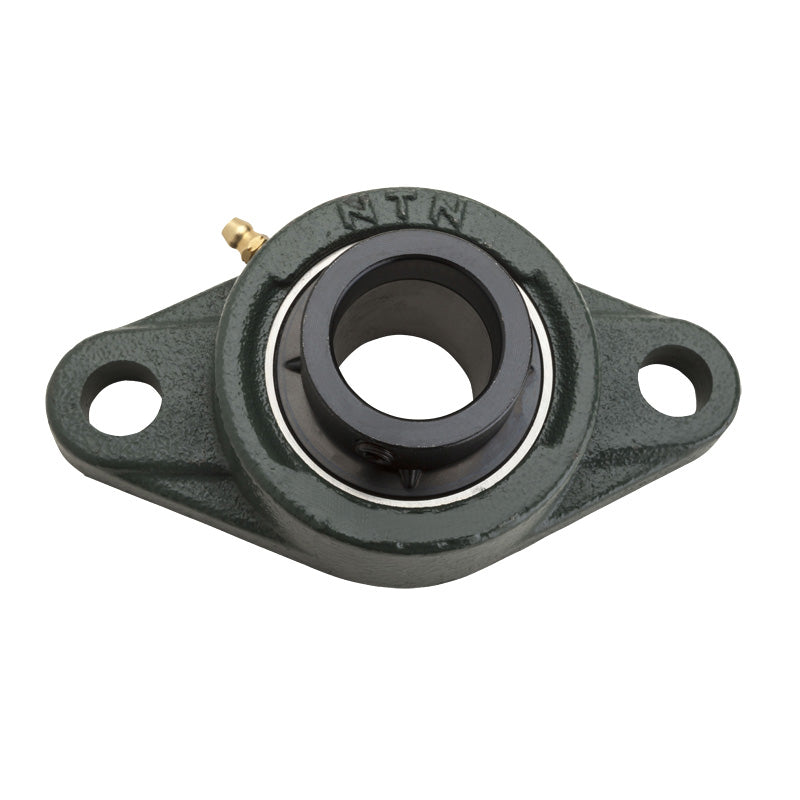

NTN M-UELFL213D1 Metric Two Bolt Cast Iron Oval Housing with 65mm Bore Eccentric Collar Insert - Allow 2-3 Days
NTN M-UELFL213D1 Metric Two Bolt Cast Iron Oval Housing with 65mm Bore Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UELFL200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Style:
- UELFL
- Bolt Hole Centres:
- 210mm
Technical
Technical
| Shaft diameter | 65mm |
|---|---|
| H | 258mm |
| J | 210mm |
| A<sub>2</sub> | 30mm |
| A<sub>1</sub> | 22mm |
| A | 50mm |
| N | 23mm |
| L | 155mm |
| A<sub>0</sub> | 81.55mm |
| B<sub>1</sub> | 85.7mm |
| S | 34.15mm |
| F min. | 87mm |
| Fixing bolt | M20 |
| Mass | 5.5 kg |
