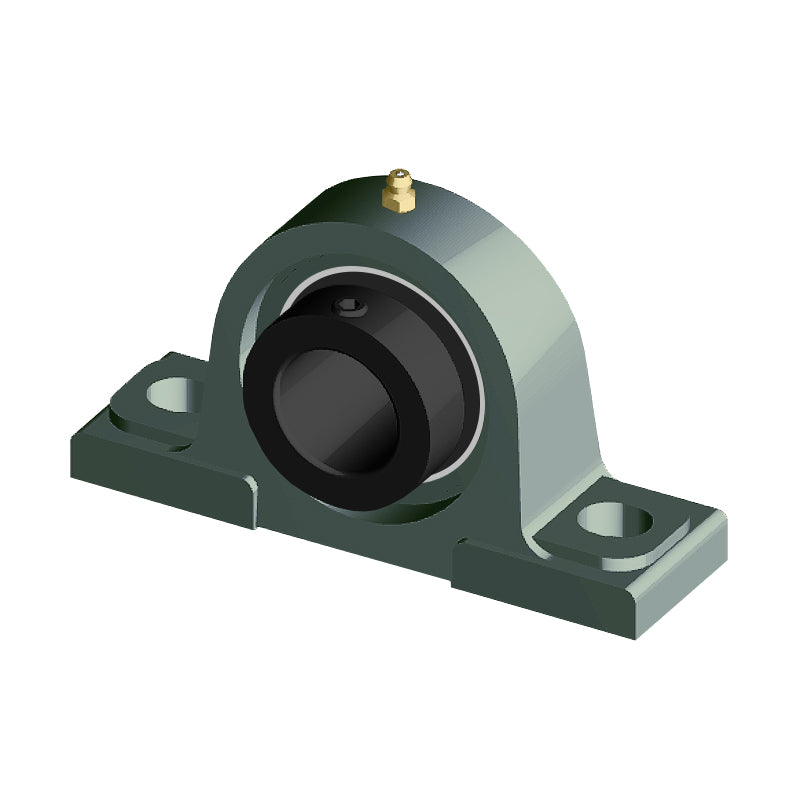

NTN M-UELP204D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 20mm Eccentric Collar Insert - Allow 2-3 Days
NTN M-UELP204D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 20mm Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UELP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Style:
- UELP
- Bolt Hole Centres:
- 95mm
Technical
Technical
| Shaft diameter | 20mm |
|---|---|
| H | 33.3mm |
| L | 127mm |
| J | 95mm |
| A | 38mm |
| N | 13mm |
| N<sub>1</sub> | 16mm |
| H<sub>1</sub> | 14mm |
| H<sub>2</sub> | 65mm |
| L<sub>1</sub> | 42mm |
| B<sub>1</sub> | 43.7mm |
| S | 17.1mm |
| Fixing bolt | M10 |
| Mass | 0.8 kg |
