SKU: M249734/M249710CD/M249734XB-TIM

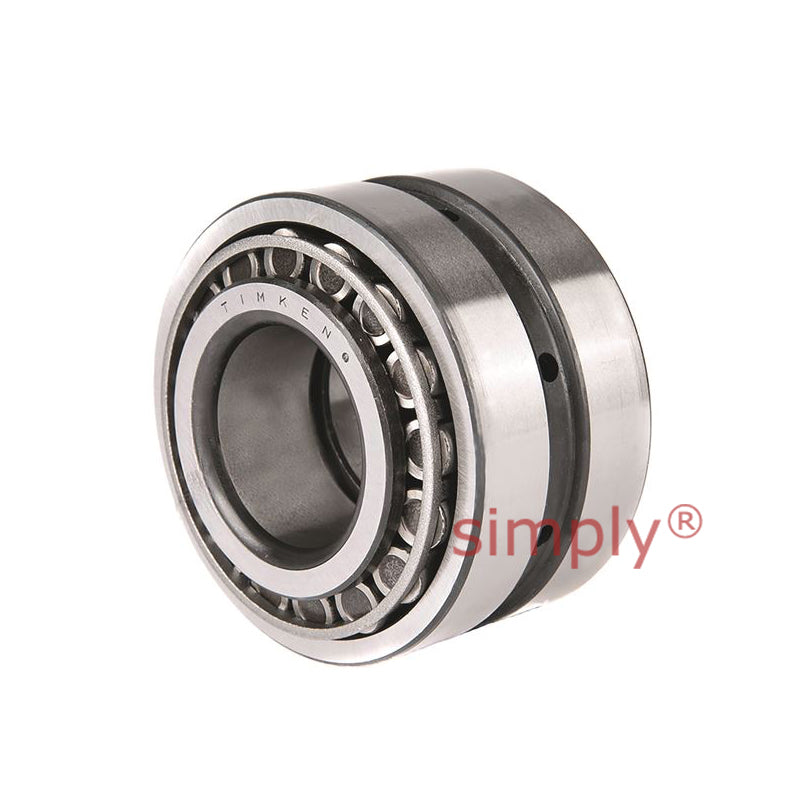

Timken M249734/M249710CD/M249734XB TDO Double Outer Race Taper Roller Bearing 9.125x14.125x6x4.625 inch
Timken M249734/M249710CD/M249734XB TDO Double Outer Race Taper Roller Bearing 9.125x14.125x6x4.625 inch
Out of stock
Description
Description

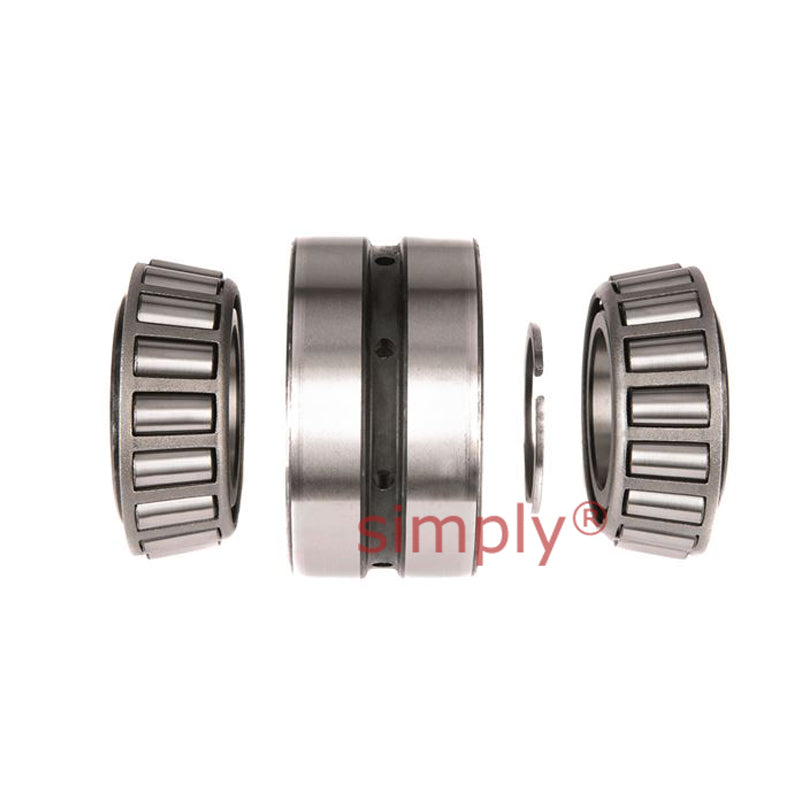

Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 231.78mm = 9.125 inch
- Outside Diameter:
- 358.78mm = 14.125 inch
- Width:
- 152.40mm = 6 inch
Technical
Technical
| d | 231.775mm = 9.125 inch |
|---|---|
| D | 358.775mm = 14.125 inch |
| T | 152.4mm = 6 inch |
| C | 117.475mm = 4.625 inch |
| Dynamic (1) C1 | 1560000N |
| Factors (5) e | 0.33 |
| Factors (5) Y1 | 2.03 |
| Factors (5) Y2 | 3.02 |
| Dynamic (2) C90 | 232000N |
| Dynamic (2) Ca90 | 132000N |
| Dynamic (2) C90(2) | 405000N |
| Factors (5) K | 1.76 |
| Shaft max shaft fillet radius R(3) | 6.4mm = 0.25 inch |
| Shaft backing shoulder diameter db | 263mm = 10.35 inch |
| Housing max shaft fillet radius r(3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Da | 343mm = 13.5 inch |
| Pin Ka | 25.4mm = 1 inch |
| Pin Kb | 8.6mm = 0.34 inch |
| G1 | 1630 |
| G2 | 168 |
| Cg | 0.1526 |
