SKU: MFC2.3/4-RHP

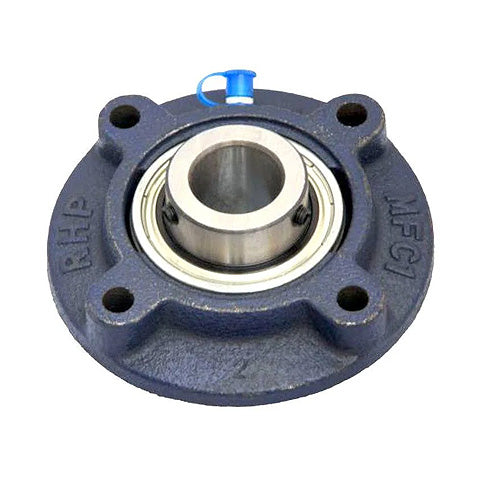

RHP MFC2-3/4 Four Bolt Round Cast Iron Flanged Bearing Unit and 2-3/4 inch Insert
RHP MFC2-3/4 Four Bolt Round Cast Iron Flanged Bearing Unit and 2-3/4 inch Insert
Regular price
€305,68
ex VAT
Regular price
Sale price
€305,68
ex VAT
In stock
Price Break
10+
€232,81
20+
€219,73
30+
€217,11
40+
€214,50
50+
€211,88
75+
€209,27
100+
€196,19
200+
€193,57
250+
€190,95
500+
€188,34
1000+
€183,11
Share this product
Description
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 69.85mm = 2.75 (2-3/4) inch
- Style:
- MFC
- Pitch Circle Diameter:
- 190.5mm = 7.5 (7-1/2) inch
Technical
Technical
| Bore | 2-3/4 inch |
|---|---|
| L | 8.748 inch |
| H | 6.375 inch |
| J | 7.5 inch |
| G | 0.625 inch |
| A1 | 2 inch |
| A4 | 0.827 inch |
| A5 | 0.5 inch |
| B | 3.062 inch |
| s | 1.314 inch |
| d1 | 3.622 inch |
| Dynamic load | 66000 N |
| Static load | 49500 N |
| Rec max speed | 2300 rpm |
| Weight | 5.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1075-2-3/4G+insonly">1075-2-3/4G Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
