SKU: MFC80-RHP

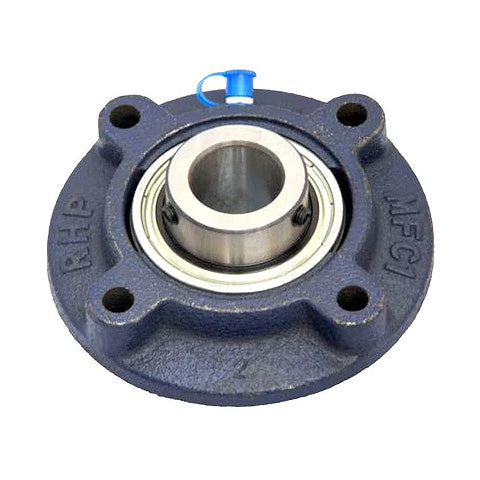

RHP MFC80 Four Bolt Round Cast Iron Flanged Bearing Unit and 80mm Insert
- Regular price
- €337.68 ex VAT
- Sale price
- €337,68
- Regular price
-
In stock
Quantity Price Breaks
10
€300.54
20
€283.65
30
€280.27
40
€276.90
50
€273.52
75
€270.14
100
€253.26
200
€249.88
250
€246.51
500
€243.13
1000
€236.38
SKU:
MFC80-RHP
RHP MFC80 Four Bolt Round Cast Iron Flanged Bearing Unit and 80mm Insert
- Regular price
- €337.68 ex VAT
- Sale price
- €337,68
- Regular price
-
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |

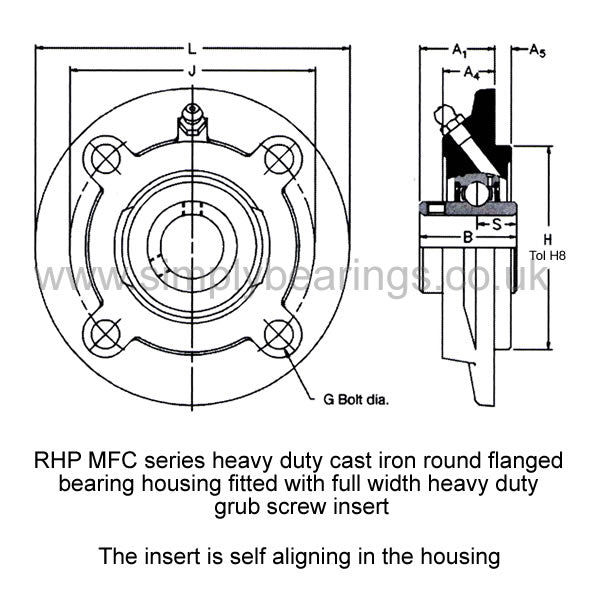

Technical
| Bore | = | 80mm |
| L | = | 222.2mm |
| H | = | 161.92mm |
| J | = | 190.5mm |
| G | = | 16mm |
| A1 | = | 50.8mm |
| A4 | = | 16.7mm |
| A5 | = | 12.7mm |
| B | = | 82.55mm |
| s | = | 33.37mm |
| d1 | = | 98.5mm |
| Dynamic load | = | 71500 N |
| Static load | = | 54500 N |
| Rec max speed | = | 2150 rpm |
| Weight | = | 5.4 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1080-80G+insonly" |
| > | = | 1080-80G Click Here< |
| /a> | = | |
| Casting group | = | 9 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
