SKU: MH-M06-MB

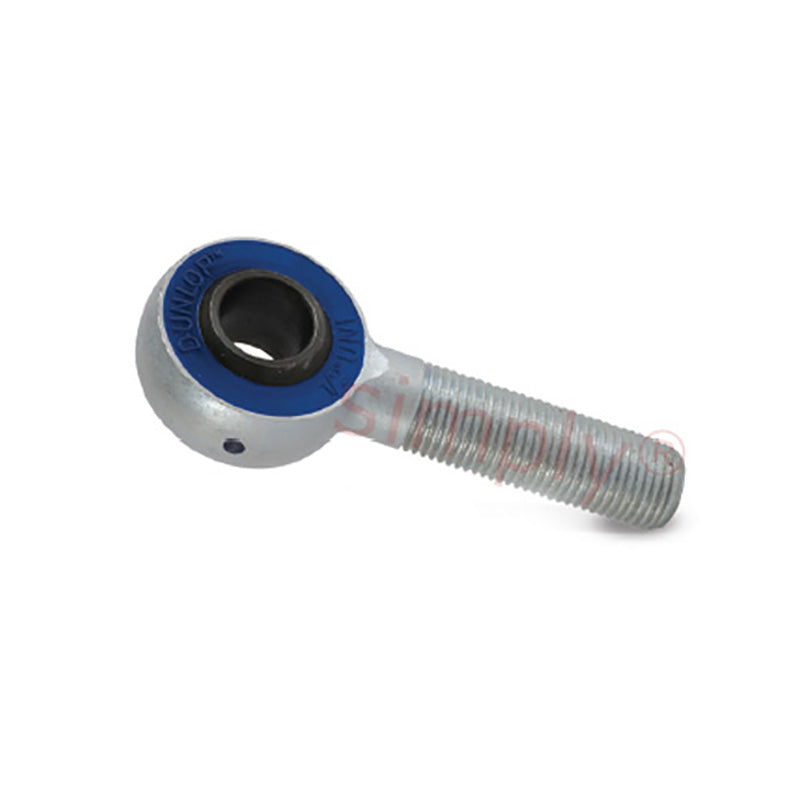

Branded MH-M06 Right Hand Metric Steel / Polyurethane Lined Maintenance Free Plain Male Rod End M6x1 Thread
Branded MH-M06 Right Hand Metric Steel / Polyurethane Lined Maintenance Free Plain Male Rod End M6x1 Thread
Regular price
€9,49
ex VAT
Regular price
Sale price
€9,49
ex VAT
In stock
Price Break
10+
€7,21
19+
€6,80
29+
€6,72
39+
€6,64
49+
€6,56
74+
€6,48
99+
€6,07
199+
€5,99
249+
€5,91
499+
€5,83
999+
€5,67
Quantity
Couldn't load pickup availability
Description
Description
|
MH Series Maintenance Free Rod Ends with Male Thread: These MH series rod ends incorporate a polyurethane bearing race that provides ultra-smooth operation. A nitrotec surface protected ball with a PTFE lubricant provide superior shock load and extended wear properties, combined with excellent chemical and corrosion resistance. The unique innovative captive body design prevents detachment through excessive axial loads. For optimum performance, ensure that the rod end is mounted with the moulded lettering facing away from the direction of pull, available in both metric and imperial sizes. Temperature range from -40c to + 80c Benefits: Low friction, high shock loads, extended wear life, no maintenance |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M6x1
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 6mm
- Material:
- Polyurethane Lined
Technical
Technical
| Bore size | 6mm |
|---|---|
| Thread | M6x1 |
| W | 9mm |
| H | 6.75mm |
| D | 20mm |
| L1 | 36mm |
| L2 | 21mm |
| O | 8.9mm |
| Static load | 9806 N |
