SKU: ML5008-ZZ-EU

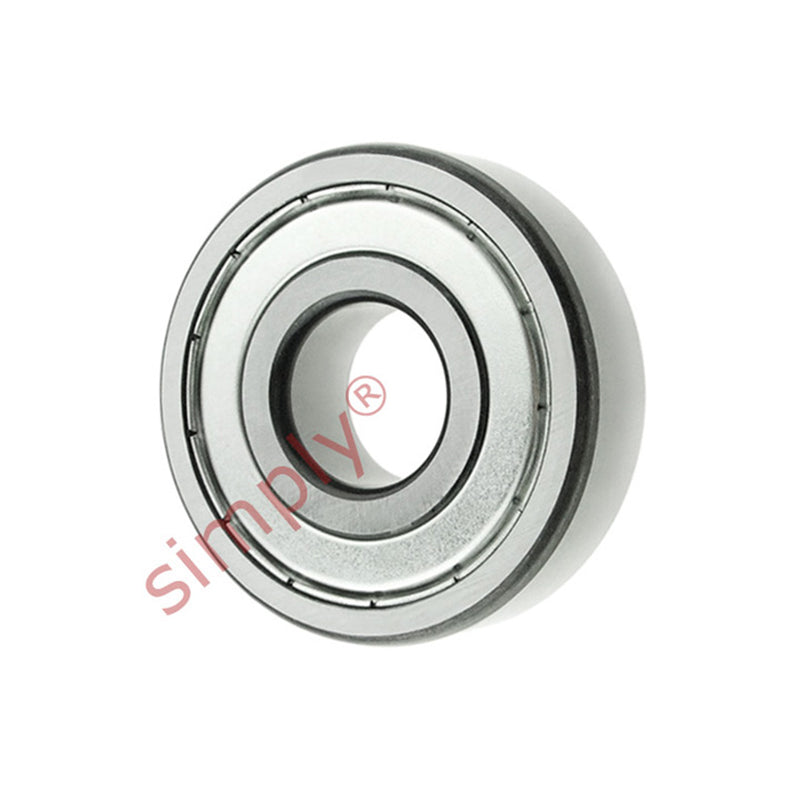

ML5008ZZ Budget Metal Shielded Deep Groove Ball Bearing 5x8x2.5mm
ML5008ZZ Budget Metal Shielded Deep Groove Ball Bearing 5x8x2.5mm
Equivalent to: ML50082Z ML50082ZR ML5008ZZE ML5008Z ML5008-Z ML5008-2Z
Out of stock
Share this product
Description
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 5mm
- Outside Diameter:
- 8mm
- Width:
- 2.5mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 5mm |
|---|---|
| D | 8mm |
| B | 2.5mm |
| r min | 0.08mm |
| r1 min | 0.05mm |
| Dynamic load | 0.26 kN |
| Static load | 0.12 kN |
| Speed in oil | 59000 rpm |
