SKU: MP-07F-MB

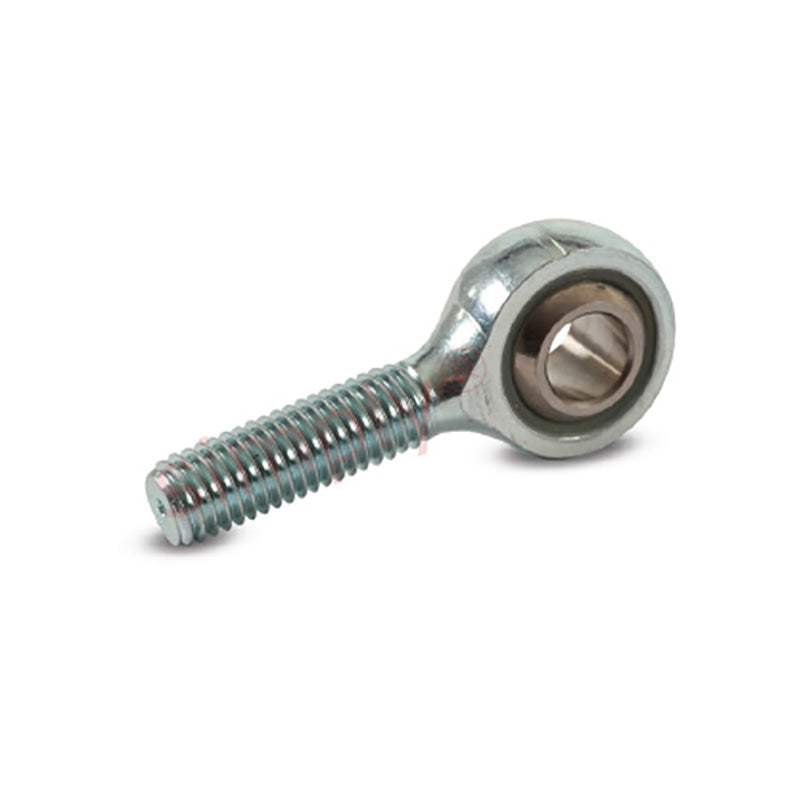

Branded MP-07F Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 7/16 BSF Thread - Allow 7-10 Days
- Regular price
- €22.36 ex VAT
- Sale price
- €22,36
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
10
€19.90
19
€18.78
29
€18.56
39
€18.34
49
€18.11
74
€17.89
99
€16.77
199
€16.55
249
€16.32
499
€16.10
999
€15.65
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
Technical
| Bore size | = | 7/16 inch |
| Thread | = | 7/16 BSF |
| W | = | 0.562 inch |
| H | = | 0.437 inch |
| D | = | 1.125 inch |
| L1 | = | 2.125 inch |
| L2 | = | 1.375 inch |
| O | = | 0.586 inch |
| Static load | = | 19750 N |
