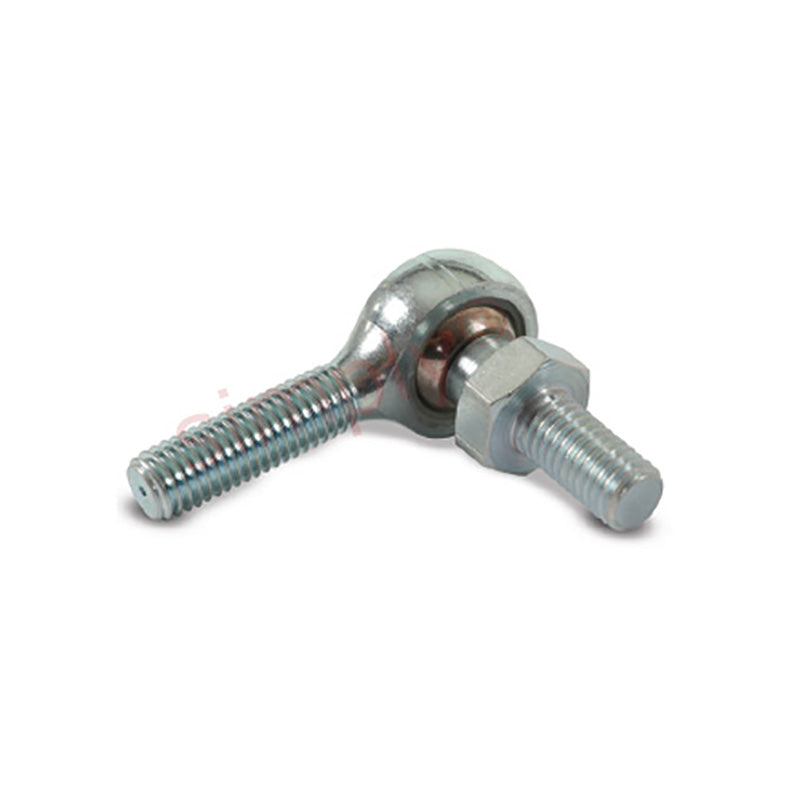

Branded MPL-M06S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M6x1 Thread

SKU: MPL-M06S-MB

Branded MPL-M06S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M6x1 Thread

€12.48 ex VAT
€12,48
ex VAT
In stock

Quantity Price Breaks

10 €11.11
19 €10.48
29 €10.36
39 €10.23
49 €10.11
74 €9.98
99 €9.36
199 €9.24
249 €9.11
499 €8.99
999 €8.74
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Branded MPL-M06S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M6x1 Thread
SKU: MPL-M06S-MB

Branded MPL-M06S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M6x1 Thread

€12.48 ex VAT
€12,48
ex VAT

Description

MPS Series Nylon Lined Studded Male Rod End: These studded MPS series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance
Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Stud: Steel 230M07PB zinc plated white and blue passivate (silver/ clear) and stainless steel 303L.
Operating Temperature Range: Operating temperature range -30c to +170c
Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance.

Technical

Stud size = M6
Thread = M6x1
A = 12mm
B = 12mm
C = 10mm
K = 10mm
Static load = 1930 N
