SKU: MPL-M20-18C-MB

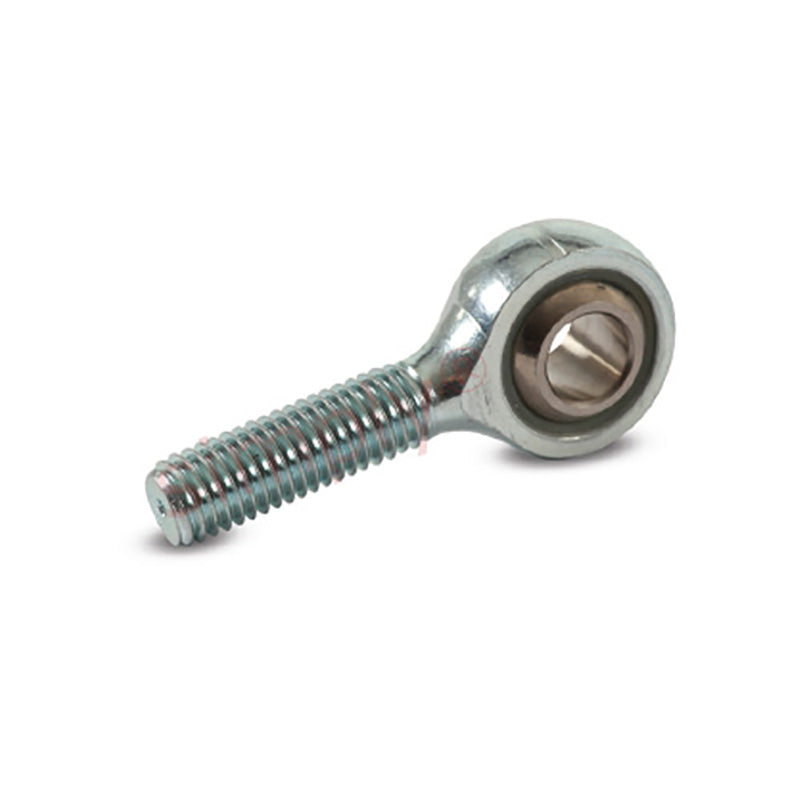

Branded MPL-M20-18C Left Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M20x1.5 Thread - Allow 7-10 Days
Branded MPL-M20-18C Left Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M20x1.5 Thread - Allow 7-10 Days
Regular price
€74,17
ex VAT
Regular price
Sale price
€74,17
ex VAT
In stock
Price Break
10+
€56,37
19+
€53,20
29+
€52,57
39+
€51,93
49+
€51,30
74+
€50,67
99+
€47,50
199+
€46,87
249+
€46,23
499+
€45,60
999+
€44,33
Quantity
Couldn't load pickup availability
Description
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M20x1.5
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 18mm
- Material:
- Nylon Lined
Technical
Technical
| Bore size | 18mm |
|---|---|
| Thread | M20x1.5 |
| W | 25mm |
| H | 18mm |
| D | 50mm |
| L1 | 78mm |
| L2 | 46mm |
| O | 24.5mm |
| Static load | 55240 N |
