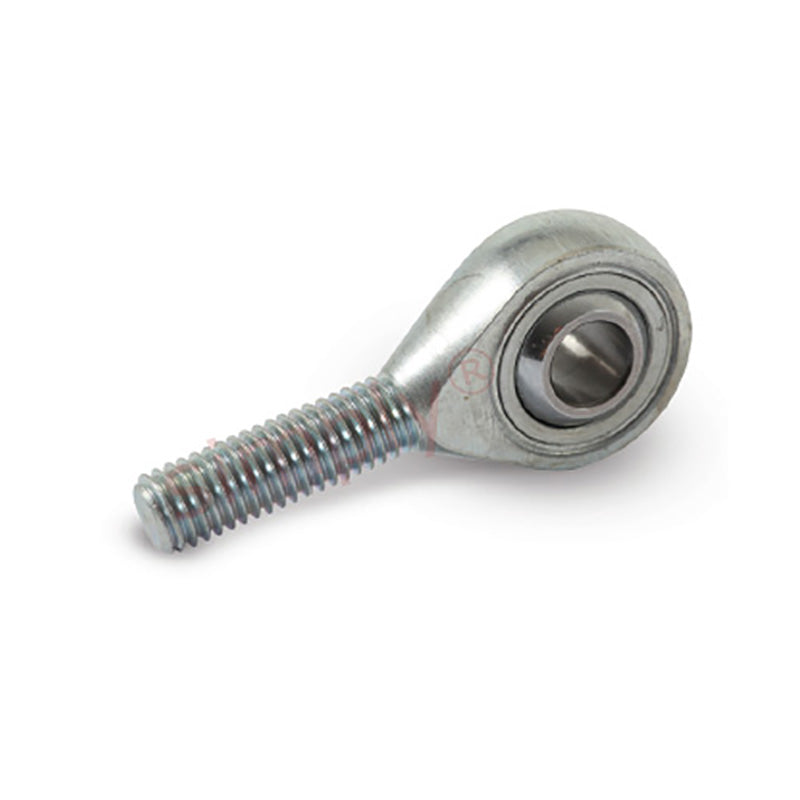

Branded MS-M08 Right Hand Metric Stainless Steel / PTFE Lined Maintenance Free Plain Male Rod End M8x1.25 Thread - Allow 7-10 Days

SKU: MS-M08 SS-MB

Branded MS-M08 Right Hand Metric Stainless Steel / PTFE Lined Maintenance Free Plain Male Rod End M8x1.25 Thread - Allow 7-10 Days

€42.23 ex VAT
€42,23
ex VAT
Not in stock

Quantity Price Breaks

10 €37.58
19 €35.47
29 €35.05
39 €34.63
49 €34.21
74 €33.78
99 €31.67
199 €31.25
249 €30.83
499 €30.41
999 €29.56
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Branded MS-M08 Right Hand Metric Stainless Steel / PTFE Lined Maintenance Free Plain Male Rod End M8x1.25 Thread - Allow 7-10 Days
SKU: MS-M08 SS-MB

Branded MS-M08 Right Hand Metric Stainless Steel / PTFE Lined Maintenance Free Plain Male Rod End M8x1.25 Thread - Allow 7-10 Days

€42.23 ex VAT
€42,23
ex VAT

Description

MS SS PTFE Lined Series Maintenance Free Male Rod Ends: These stainless steel range of male rod ends incorporate a high strength PTFE bronze mesh between the ball and the liner material, suitable for high shock loads and medium to heavy mechanical load applications requiring low friction, available in both metric and imperial bore thread sizes, they do not require maintenance.
Materials: Housing and inner ring: 230M07PB steel zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Liner: High strength PTFE bronze mesh composite. Ball: Bearing steel 100Cr6, heat treated, polished & electroless nickel plated and stainless steel 440C
Operating Temperature Range: Operating temperature range -200c to + 260c
Benefits: High shock loads, extended wear life, no maintenance

Technical

Bore size = 8mm
Thread = M8x1.25
W = 12mm
H = 9mm
D = 24mm
L1 = 42mm
L2 = 25mm
O = 10.4mm
Static load = 11100 N
