SKU: MSL-07 SS-MB

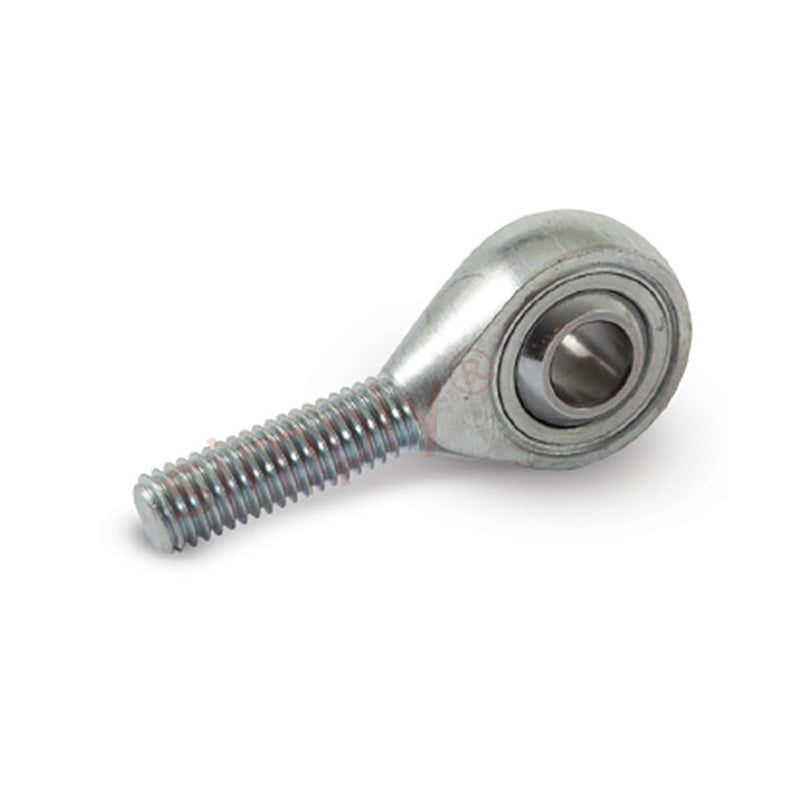

Branded MSL-07 Left Hand Imperial Stainless Steel / PTFE Lined Maintenance Free Plain Male Rod End 7/16 UNF Thread - Allow 7-10 Days
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
MS SS PTFE Lined Series Maintenance Free Male Rod Ends: These stainless steel range of male rod ends incorporate a high strength PTFE bronze mesh between the ball and the liner material, suitable for high shock loads and medium to heavy mechanical load applications requiring low friction, available in both metric and imperial bore thread sizes, they do not require maintenance. |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- 7/16 UNF
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 11.11mm = 0.437 (7/16) inch
- Material:
- PTFE Lined
Technical
| Bore size | 7/16 inch |
|---|---|
| Thread | 7/16 UNF |
| W | 0.562 inch |
| H | 0.437 inch |
| D | 1.25 inch |
| L1 | 2.125 inch |
| L2 | 1.375 inch |
| O | 14.9 inch |
| Static load | 19900 N |
