SKU: MUCNFL207-22-SNR

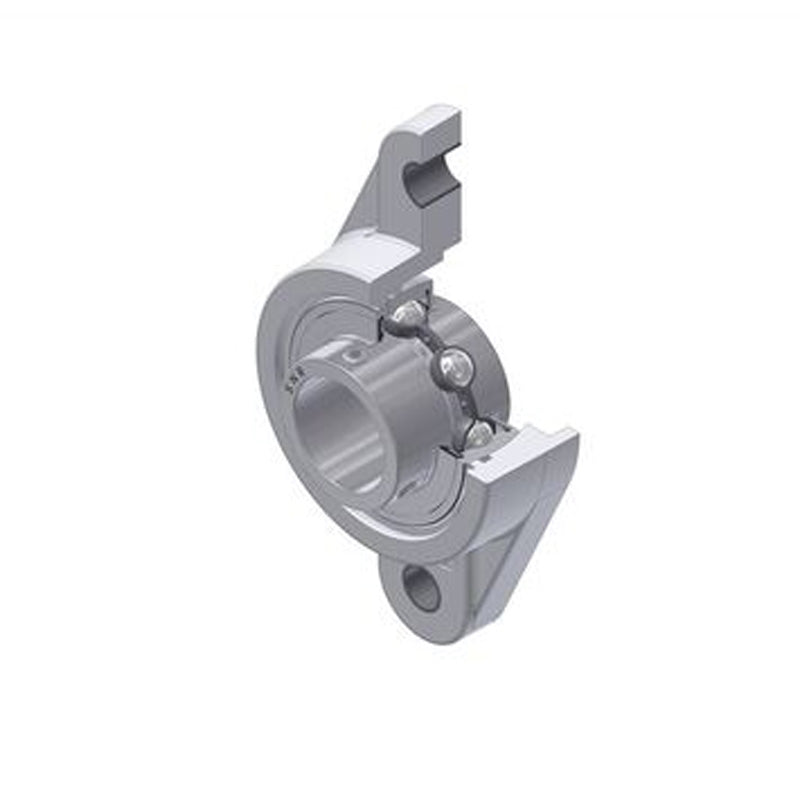

SNR MUCNFL207-22 Imperial Thermoplastic Two Bolt Oval Flanged Bracket Housing Unit with 1-3/8 inch Bore Insert - Allow 2-3 Days

SNR MUCNFL207-22 Imperial Thermoplastic Two Bolt Oval Flanged Bracket Housing Unit with 1-3/8 inch Bore Insert - Allow 2-3 Days

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-3/8 inch
A - Housing height 32.8mm
A1 - Housing foot height / flange height 16.1mm
A2 - Total height from mounting surface 43.4mm
B - Width of Inner Ring 42.9mm
d - Shaft diameter 34.925mm
e - Distance mounting surface to bearing centre 18mm
G - Grease fitting 1/4-28 inch
H - Housing length, width or diameter 163mm
J - Mounting holes distance 130mm
L - Housing width / diameter 90mm
N - Mounting hole dimension 13mm
S - Distance front side/bearing centre 17.5mm
C - Dynamic load rating 22 kN
C0 - Static load rating 12.3 kN
Operating temperature min. -20 Deg C
Operating temperature max. 100 Deg C
Mass 0.66kg
Recommended tightening torque for set screw 8.3 Nm
