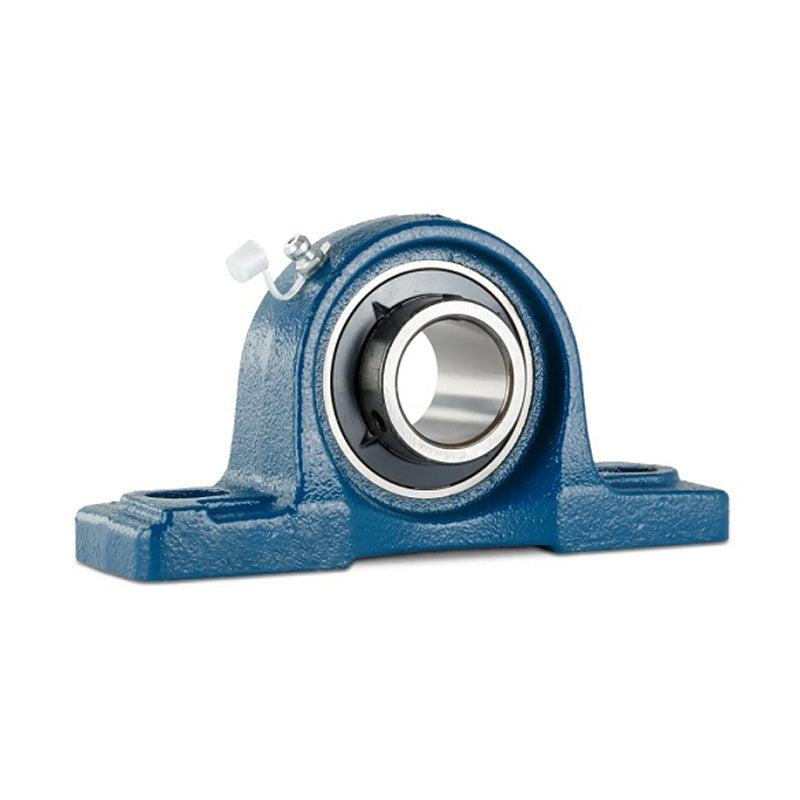

• Asahi MUCP204FD Stainless Steel Two Bolt Pillow / Plummer Block Housing with 20mm Bore Stainless Insert with Food Safe Grease
1 1

SKU: MUCP204FD

Asahi MUCP204FD Stainless Steel Two Bolt Pillow / Plummer Block Housing with 20mm Bore Stainless Insert with Food Safe Grease

Asahi MUCP204FD Stainless Steel Two Bolt Pillow / Plummer Block Housing with 20mm Bore Stainless Insert with Food Safe Grease
€98,37 ex VAT
€98,37 ex VAT
Sale Sold out

In stock

Price Break
10+ €74,76
19+ €70,56
29+ €69,72
39+ €68,88
49+ €68,04
74+ €67,20
99+ €63,00
199+ €62,16
249+ €61,32
499+ €60,48
999+ €58,80

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP200SS_DESC

Note: The insert bearing supplied with this housing is prefilled with food compatible grease.

Brand / Quality:
Asahi - High Quality
Inside Diameter:
20mm
Bolt Hole Centres:
95mm

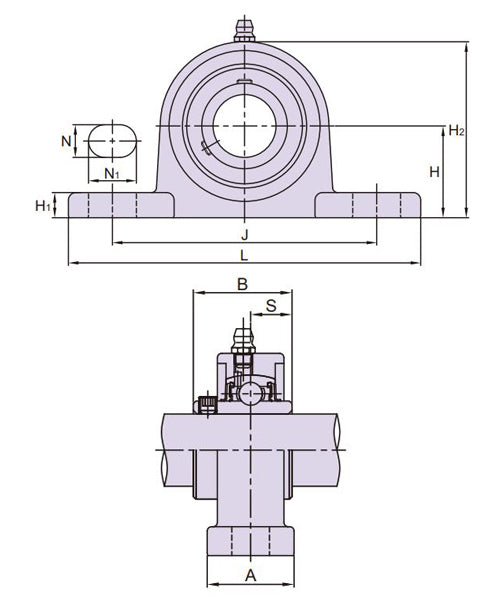

Technical
d 20mm
H 33.3mm
L 127mm
A 30mm
J 95mm
N 13mm
N1 19mm
H1 11mm
H2 65mm
B 31mm
S 12.7mm
Bolt Size M10
Basic Dynamic Load Rating 10.9 kN
Basic Static Load Rating 5.3 kN
