SKU: N1300-077SS

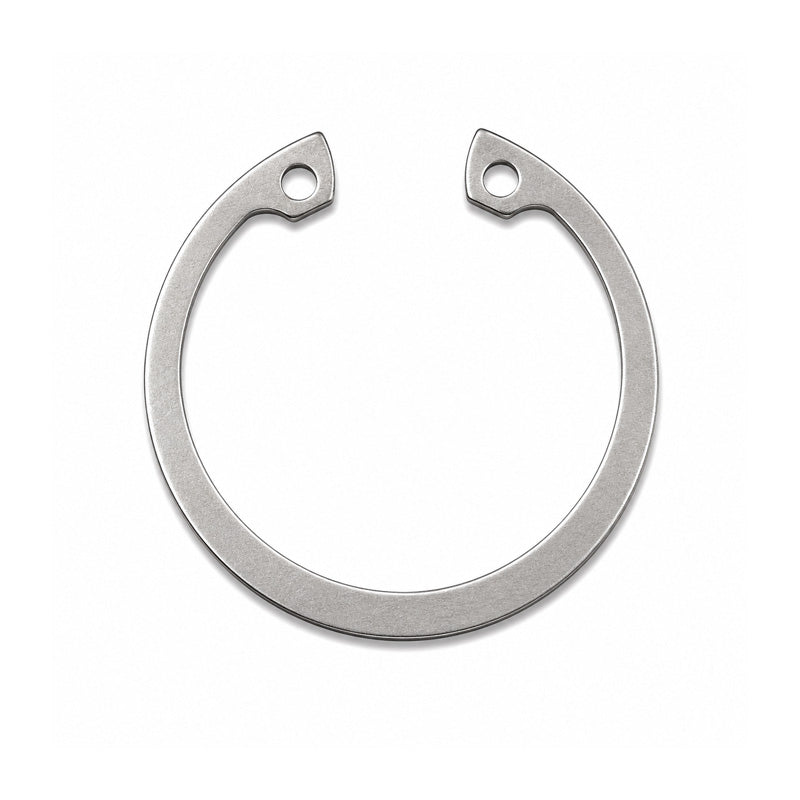

Stainless Steel Internal Circlip for 0.77 inch Bore Diameter Un-Sprung Diameter 0.859 inch
Stainless Steel Internal Circlip for 0.77 inch Bore Diameter Un-Sprung Diameter 0.859 inch
Equivalent to: N1300-077SS
Out of stock
Description
Description
|
Stainless Steel Imperial Internal Circlips: The most common form of axially fitted circlips for bores with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Material: Stainless Spring Steel Benefits: Cost effective replacement, durable, removable, corrosion resistant |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Bore:
- 19.74mm = 0.777 inch
- Outside Diameter:
- 21.83mm = 0.859 (55/64) inch
- Material:
- Stainless Steel
- Thickness:
- 1.07mm = 0.042 inch
- Groove Diameter:
- 20.96mm = 0.825 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Bore Size (B) | 0.777 inch |
| Ring Thickness (t) | 0.042 inch |
| Thickness tolerance (t) | 0.042 inch |
| Unstressed diameter (D) | 0.859 inch |
| Unstressed diameter tolerance (D) | +0.010 / -0.005 inch |
| Lug (L) | 0.151 inch |
| Beam (b) | 0.074 inch |
| h | 0.06 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 0.825 inch |
| Groove tolerance (G) | 0.003 inch |
| Minimum Groove Width (W) | 0.046 inch |
| Groove Width Tolerance (W) | +0.003 / -0.000 inch |
| Groove depth (d) | 0.24 inch |
