SKU: N1300-102SS

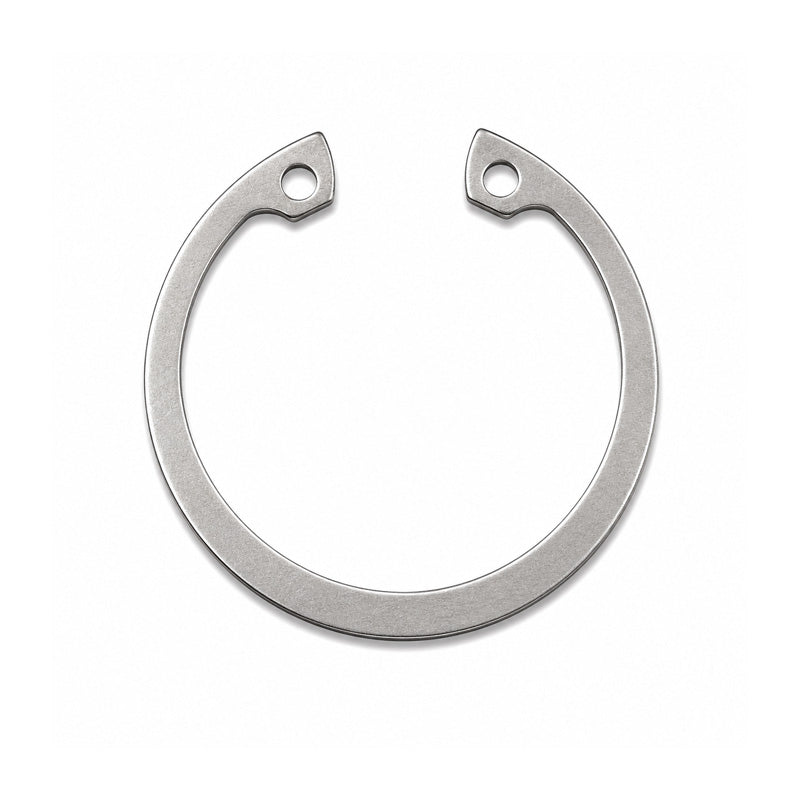

Stainless Steel Internal Circlip for 1.02 inch Bore Diameter Un-Sprung Diameter 1.136 inch
Stainless Steel Internal Circlip for 1.02 inch Bore Diameter Un-Sprung Diameter 1.136 inch
Equivalent to: N1300-102SS
Out of stock
Description
Description
|
Stainless Steel Imperial Internal Circlips: The most common form of axially fitted circlips for bores with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Material: Stainless Spring Steel Benefits: Cost effective replacement, durable, removable, corrosion resistant |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Bore:
- 25.98mm = 1.023 inch
- Outside Diameter:
- 28.85mm = 1.136 inch
- Material:
- Stainless Steel
- Thickness:
- 1.07mm = 0.042 inch
- Groove Diameter:
- 27.71mm = 1.091 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Bore Size (B) | 1.023 inch |
| Ring Thickness (t) | 0.042 inch |
| Thickness tolerance (t) | 0.042 inch |
| Unstressed diameter (D) | 1.136 inch |
| Unstressed diameter tolerance (D) | +0.015 / -0.010 inch |
| Lug (L) | 0.16 inch |
| Beam (b) | 0.106 inch |
| h | 0.06 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 1.091 inch |
| Groove tolerance (G) | 0.003 inch |
| Minimum Groove Width (W) | 0.046 inch |
| Groove Width Tolerance (W) | +0.003 / -0.000 inch |
| Groove depth (d) | 0.034 inch |
