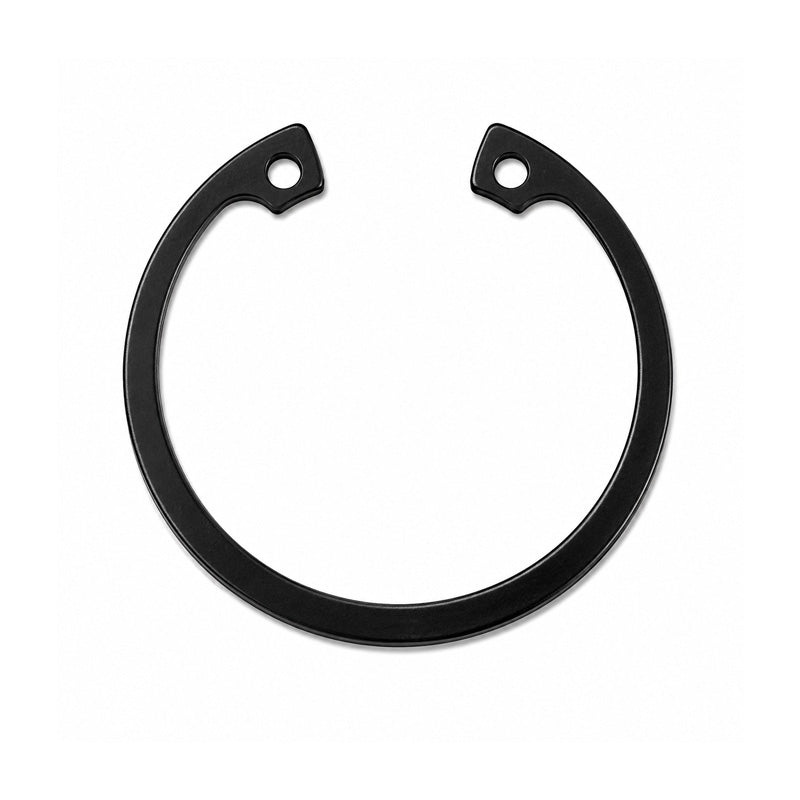

• Internal Circlip for 3.54 inch Bore Diameter Un-Sprung Diameter 3.936 inch
1 1

SKU: N1300-354

Internal Circlip for 3.54 inch Bore Diameter Un-Sprung Diameter 3.936 inch

Internal Circlip for 3.54 inch Bore Diameter Un-Sprung Diameter 3.936 inch
€1,67 ex VAT
€1,67 ex VAT
Sale Sold out

Equivalent to: N1300-354

In stock

Price Break
5+ €1,00
10+ €0,86
20+ €0,79
50+ €0,72
100+ €0,57
500+ €0,50
1000+ €0,43

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
84CXVY1EQQ
Brand / Quality:
Simply Circlips - Economy Quality
Bore:
89.99mm = 3.543 inch
Outside Diameter:
99.97mm = 3.936 inch
Material:
Sprung Carbon Steel
Thickness:
2.78mm = 0.109 (7/64) inch
Groove Diameter:
95.91mm = 3.776 inch
Technical
--- Clip Dimensions
Bore Size (B) 3.543 inch
Ring Thickness (t) 0.109 inch
Thickness tolerance (t) +/-0.003 inch
Unstressed diameter (D) 3.936 inch
Unstressed diameter tolerance (D) 0.055 inch
Lug (L) 0.35 inch
Beam (b) 0.292 inch
h 0.123 inch
--- Groove Requirements
Groove diameter (G) 3.776 inch
Groove tolerance (G) +/-0.006 inch
Minimum Groove Width (W) 0.120 inch
Groove Width Tolerance (W) +0.005 / -0.000 inch
Groove depth (d) 0.107 inch
