SKU: N1300-550SS

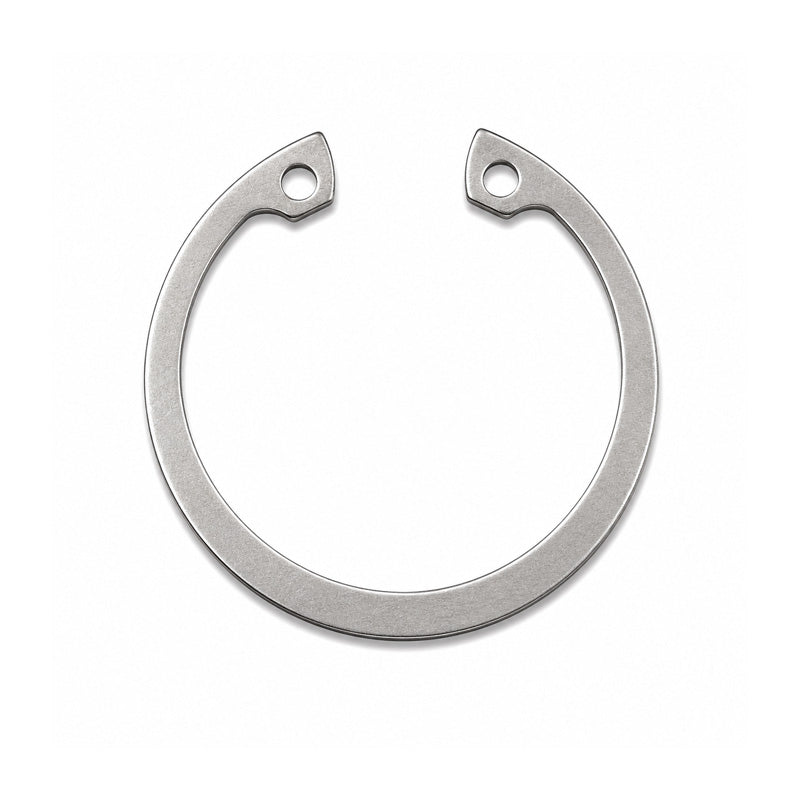

Stainless Steel Internal Circlip for 5.50 inch Bore Diameter Un-Sprung Diameter 6.066 inch
Stainless Steel Internal Circlip for 5.50 inch Bore Diameter Un-Sprung Diameter 6.066 inch
Equivalent to: N1300-550SS
Out of stock
Description
Description
|
Stainless Steel Imperial Internal Circlips: The most common form of axially fitted circlips for bores with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Material: Stainless Spring Steel Benefits: Cost effective replacement, durable, removable, corrosion resistant |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Bore:
- 139.7mm = 5.5 (5-1/2) inch
- Outside Diameter:
- 154.08mm = 6.066 inch
- Material:
- Stainless Steel
- Thickness:
- 3.18mm = 0.125 (1/8) inch
- Groove Diameter:
- 146.56mm = 5.77 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Bore Size (B) | 5.500 inch |
| Ring Thickness (t) | 0.125 inch |
| Thickness tolerance (t) | 0.125 inch |
| Unstressed diameter (D) | 6.066 inch |
| Unstressed diameter tolerance (D) | 0.065 inch |
| Lug (L) | 0.465 inch |
| Beam (b) | 0.408 inch |
| h | 0.151 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 5.770 inch |
| Groove tolerance (G) | 0.007 inch |
| Minimum Groove Width (W) | 0.139 inch |
| Groove Width Tolerance (W) | +0.006 / -0.000 inch |
| Groove depth (d) | 0.135 inch |
