SKU: N1400-243SS

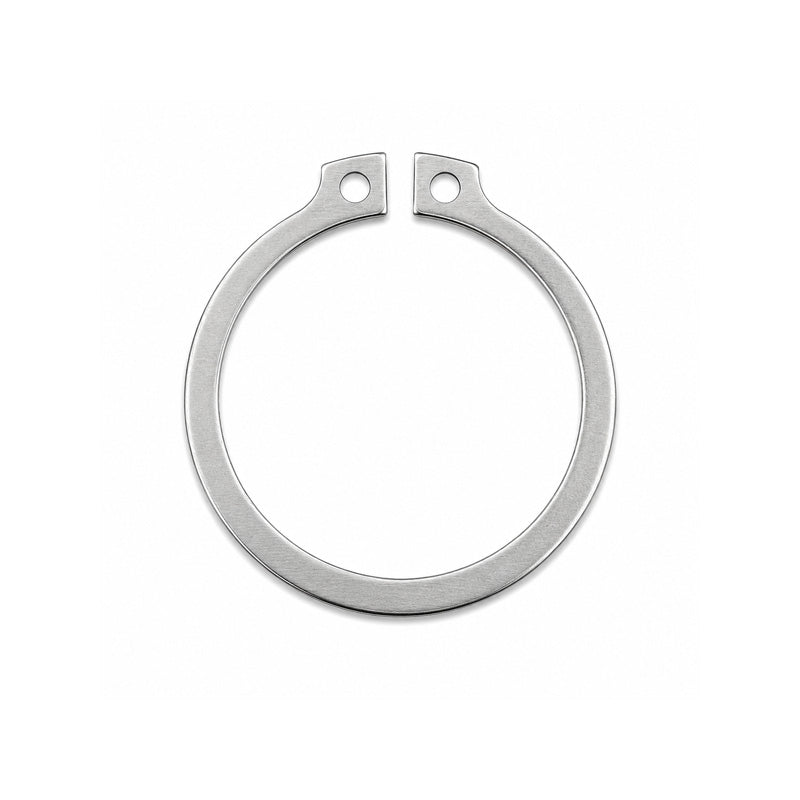

Stainless Steel External Circlip for 2.43 inch Shaft Diameter Un-Sprung Diameter 2.255 inch
Stainless Steel External Circlip for 2.43 inch Shaft Diameter Un-Sprung Diameter 2.255 inch
Equivalent to: N1400-243SS
Out of stock
Description
Description
|
Stainless Steel Imperial External Circlips: The most common form of axially fitted circlips for shafts with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Standard material: Stainless Spring Steel - Standard Finish: Phosphate and Oil Benefits: Cost effective replacement, durable, removable, corrosion resistant. |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Inside Diameter:
- 57.28mm = 2.255 inch
- Material:
- Stainless Steel
- Shaft Size:
- 61.91mm = 2.438 (2-7/16) inch
- Thickness:
- 1.98mm = 0.078 (5/64) inch
- Groove Diameter:
- 58.39mm = 2.299 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size (S) | 2.438 inch |
| Ring Thickness (t) | 0.078 inch |
| Thickness tolerance (t) | 0.003 inch |
| Unstressed diameter (D) | 2.255 inch |
| Unstressed diameter tolerance (D) | +0.015 / -0.025 inch |
| Lug (L) | 0.236 inch |
| Beam (b) | 0.228 inch |
| h | 0.12 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 2.299 inch |
| Groove tolerance (G) | 0.006 inch |
| Minimum Groove Width (W) | 0.086 inch |
| Groove Width Tolerance (W) | +0.005 / -0.000 inch |
| Groove depth (d) | 0.069 inch |
