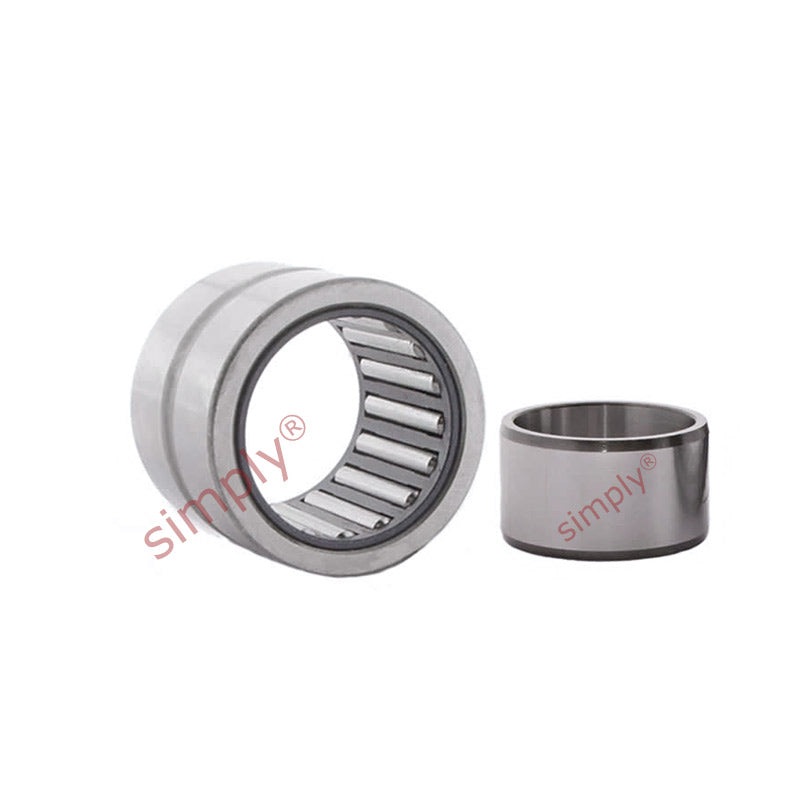

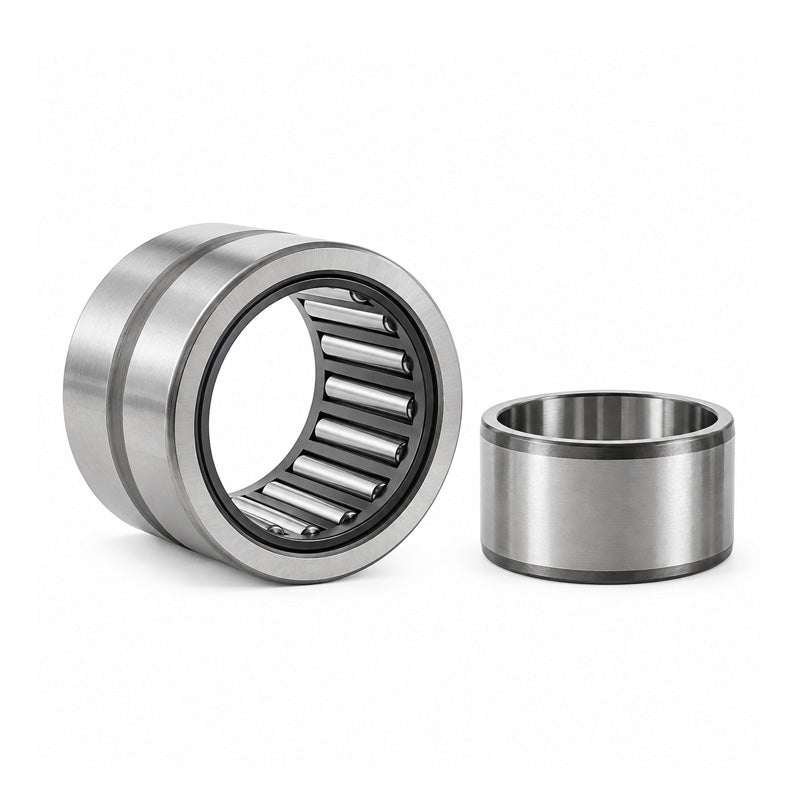

• Major Brand NA49/28 Needle Roller Bearing With Shaft Sleeve 28x45x17mm
1 1

SKU: NA49/28-MB

Major Brand NA49/28 Needle Roller Bearing With Shaft Sleeve 28x45x17mm

Major Brand NA49/28 Needle Roller Bearing With Shaft Sleeve 28x45x17mm
€116,53 ex VAT
€116,53 ex VAT
Sale Sold out

In stock

Price Break
10+ €88,72
19+ €83,74
29+ €82,74
39+ €81,75
49+ €80,75
74+ €79,75
99+ €74,77
199+ €73,77
249+ €72,77
499+ €71,78
999+ €69,78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Needle Roller Bearings with Flanges: Constructed with flanges in the outer ring to assist in the centralisation of the needle bearing race, sizes up to 17mm have no lubrication hole, or annular groove around the outside, above this size an oil hole and annular groove is provided. Generally a single row bearing with the exceptions of some of the larger sizes.
Benefits: Flanged to provide centralisation, compact and self contained and includes the inner ring.
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
28mm
Outside Diameter:
45mm
Width:
17mm
Technical
d 28mm
D 45mm
B 17mm
Dynamic load 25100 N
Static load 36500 N
Fatigue load limit Pu 4550 N
Speed in grease 8000 rpm
Speed in oil 12000 rpm
F 32mm
r1r2 0.3mm
S (axial disp) 0.8mm
da min 30mm
Da max 43mm
ra max 0.3mm
