SKU: NA4903LL/3AS-NTN

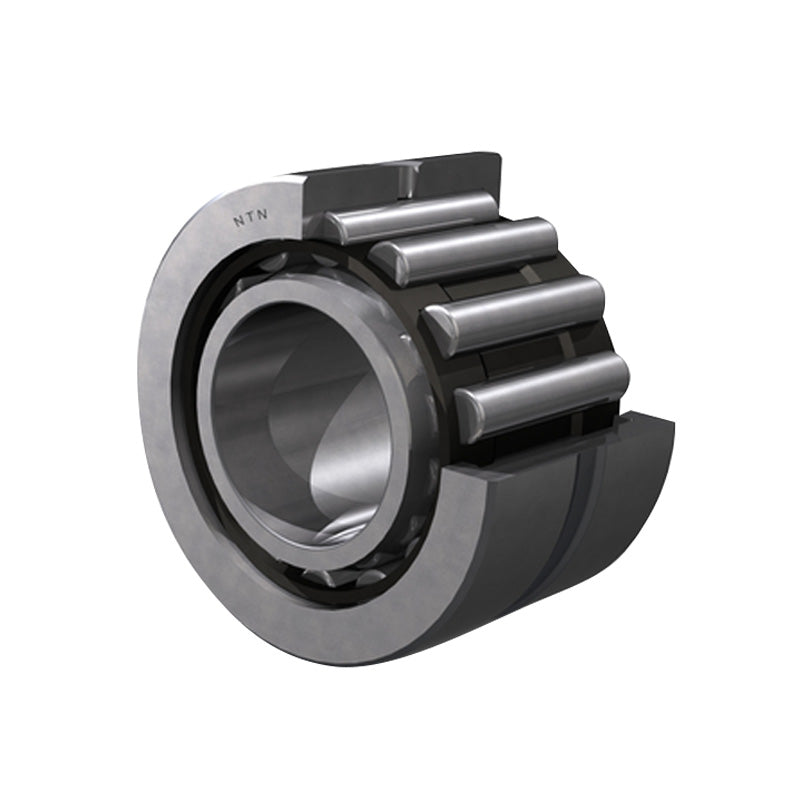

NTN NA4903LL/3AS Machined Needle Roller Bearing with Shaft Sleeve 17x30x13mm

NTN NA4903LL/3AS Machined Needle Roller Bearing with Shaft Sleeve 17x30x13mm
Regular price €23,77 ex VAT
Regular price Sale price €23,77 ex VAT
Sale Sold out

In stock

Price Break
3+ €18,07
4+ €17,05
9+ €16,85
19+ €16,65
49+ €16,44
99+ €16,24
499+ €15,23
999+ €15,02
1999+ €14,82
2999+ €14,62
4999+ €14,21
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 17mm
D - Outside diameter 30mm
B - Width of bearing / Inner ring 14mm
C - Width of bearing, drawn cup or outer ring 13mm
F - Under roller diameter 22mm
rs - Minimum fillet radius 0.3mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Lubrication hole on innr ring? Yes
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 8.5 kN
C0r - Static load rating 11.9 kN
N - Grease lubrication limit speed 9000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +100 Deg C
da min - Inner ring minimum shoulder diameter 19mm
Da max - Outer ring maximum shoulder diameter 24mm
Db max - Outer ring maximum smooth shaft shoulder diameter 28mm
ras max - Maximum shaft & housing fillet radius 0.3mm
