SKU: NA4904LL/3AS-NTN

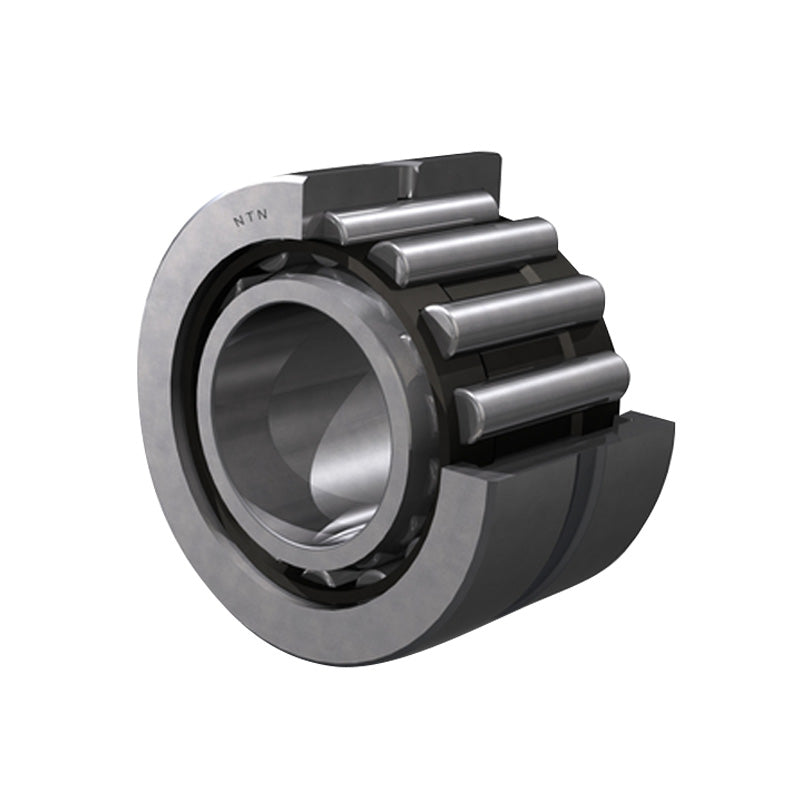

NTN NA4904LL/3AS Machined Needle Roller Bearing with Shaft Sleeve 20x37x17mm

NTN NA4904LL/3AS Machined Needle Roller Bearing with Shaft Sleeve 20x37x17mm
Regular price €26,74 ex VAT
Regular price Sale price €26,74 ex VAT
Sale Sold out

In stock

Price Break
3+ €20,32
4+ €19,18
9+ €18,95
19+ €18,72
49+ €18,49
99+ €18,26
499+ €17,12
999+ €16,89
1999+ €16,67
2999+ €16,44
4999+ €15,98
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

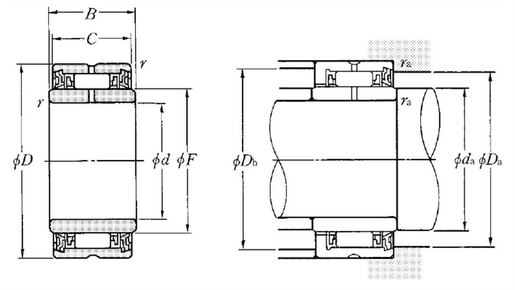

d - Inside diameter 20mm
D - Outside diameter 37mm
B - Width of bearing / Inner ring 18mm
C - Width of bearing, drawn cup or outer ring 17mm
F - Under roller diameter 25mm
rs - Minimum fillet radius 0.3mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Lubrication hole on innr ring? Yes
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 15.2 kN
C0r - Static load rating 19.9 kN
N - Grease lubrication limit speed 8000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +100 Deg C
da min - Inner ring minimum shoulder diameter 22mm
Da max - Outer ring maximum shoulder diameter 28mm
Db max - Outer ring maximum smooth shaft shoulder diameter 35mm
ras max - Maximum shaft & housing fillet radius 0.3mm
