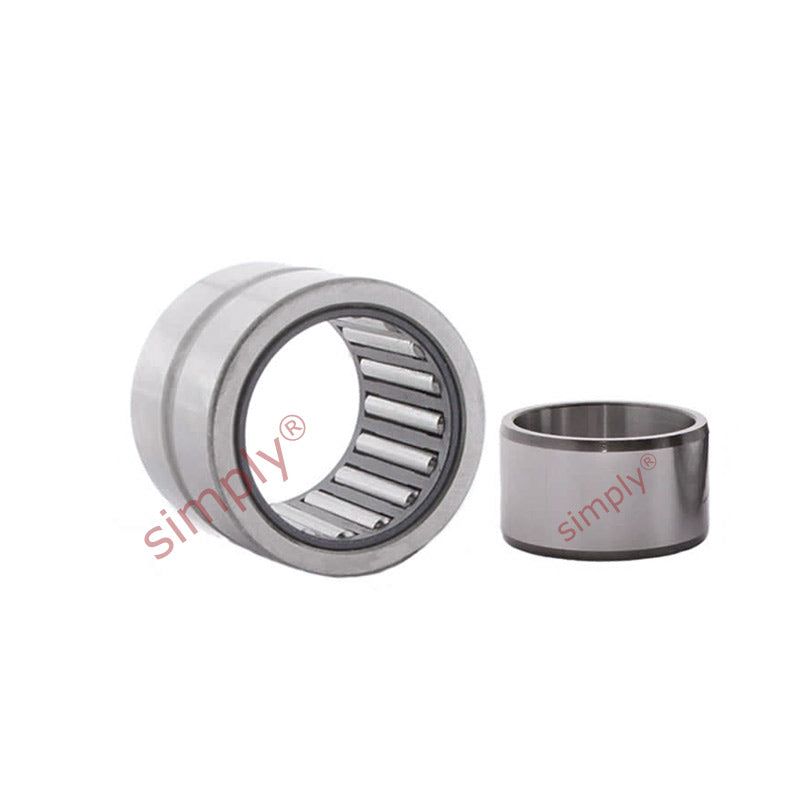

• Major Brand NA6913 Needle Roller Bearing With Shaft Sleeve 65x90x45mm
1 1

SKU: NA6913-MB

Major Brand NA6913 Needle Roller Bearing With Shaft Sleeve 65x90x45mm

Major Brand NA6913 Needle Roller Bearing With Shaft Sleeve 65x90x45mm
€171,95 ex VAT
€171,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €130,92
19+ €123,56
29+ €122,09
39+ €120,62
49+ €119,15
74+ €117,68
99+ €110,32
199+ €108,85
249+ €107,38
499+ €105,91
999+ €102,97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Needle Roller Bearings with Flanges: Constructed with flanges in the outer ring to assist in the centralisation of the needle bearing race, sizes up to 17mm have no lubrication hole, or annular groove around the outside, above this size an oil hole and annular groove is provided. Generally a single row bearing with the exceptions of some of the larger sizes.
Benefits: Flanged to provide centralisation, compact and self contained and includes the inner ring.
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
65mm
Outside Diameter:
90mm
Width:
45mm
Technical
d 65mm
D 90mm
B 45mm
Dynamic load 95200 N
Static load 212000 N
Fatigue load limit Pu 27000 N
Speed in grease 4000 rpm
Speed in oil 5600 rpm
F 72mm
r1r2 1mm
S (axial disp) 1.5mm
da min 70mm
Da max 85mm
ra max 1mm
