SKU: NAO35x50x17-MB

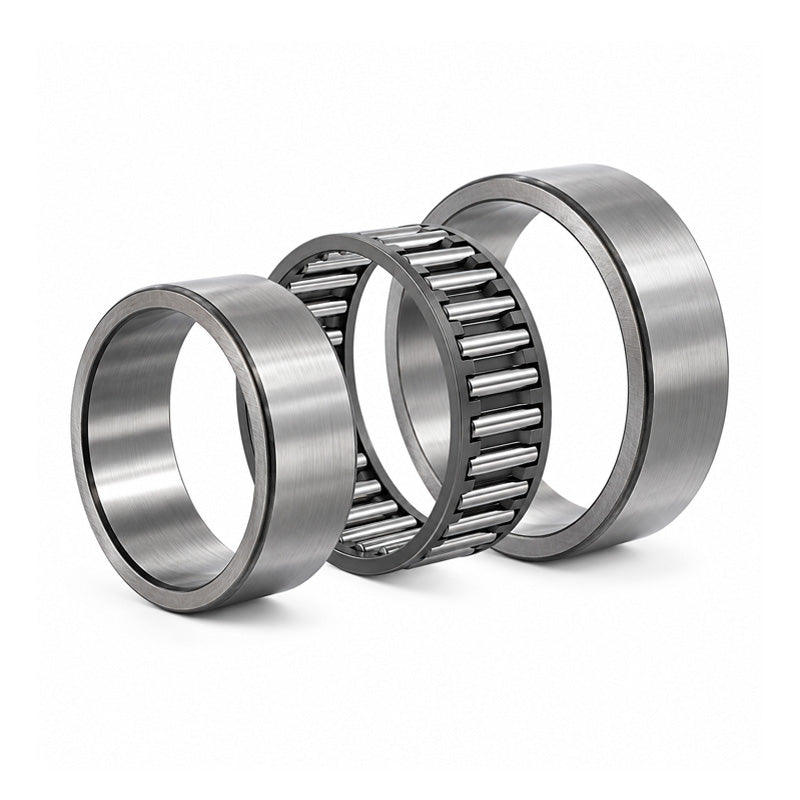

Major Brand NAO35x50x17 Needle Roller Bearings with Machined Rings and an Inner Ring

Name: Major Brand NAO35x50x17 Needle Roller Bearings with Machined Rings and an Inner Ring
Brand: Major Brand
SKU: NAO35x50x17-MB
Price: 33.84 EUR
Availability: InStock

€33,84 ex VAT

Sale Sold out

In stock

Price Break

10+ €25,76

19+ €24,31

29+ €24,03

39+ €23,74

49+ €23,45

74+ €23,16

99+ €21,71

199+ €21,42

249+ €21,13

499+ €20,84

999+ €20,26

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Needle Roller Bearings with Machined Rings and an Inner Ring: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting.
Benefits: Separable, ease of mounting.

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 35mm
Outside Diameter:: 50mm
Width:: 17mm

Technical

d	35mm
D	50mm
B	17mm
Dynamic load	20500 N
Static load	41500 N
Fatigue load limit Pu	5000 N
Speed in grease	7000 rpm
Speed in oil	10000 rpm
E	45mm
F	40mm
r1r2 min	0.3mm
S (axial disp)	0.8mm
da	44.4mm
db	39.5mm
Da	45.5mm
Db	40.6mm
ra max	0.3mm
Weight	110 g
