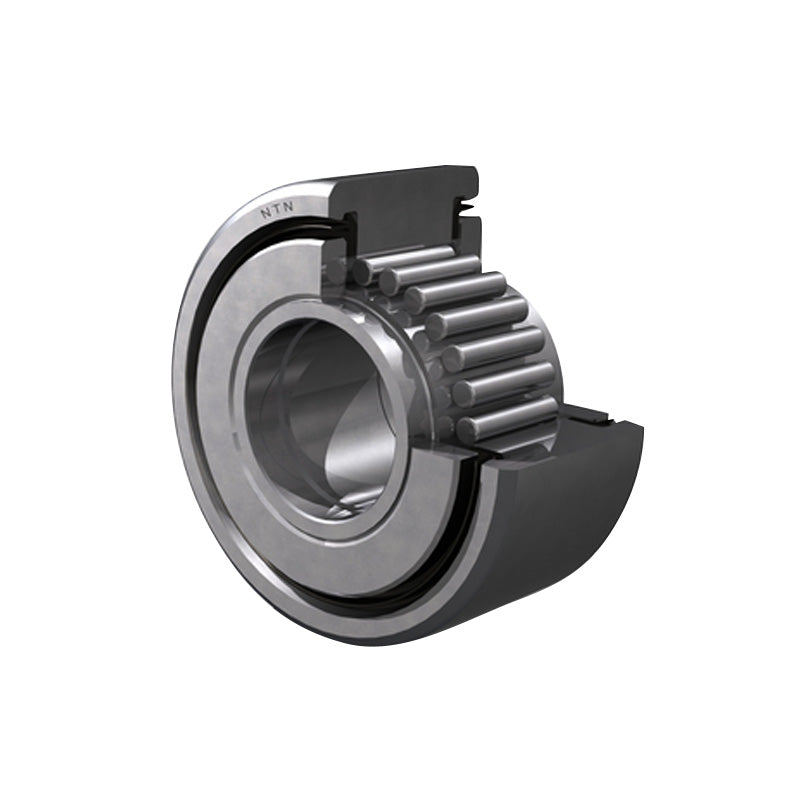

NTN NATV10LL/3AS Yoke Type Track Roller with Inner Race 10x30x14mm
NTN NATV10LL/3AS Yoke Type Track Roller with Inner Race 10x30x14mm
Regular price
€27,13
ex VAT
Regular price
Sale price
€27,13
ex VAT
In stock
Price Break
3+
€20,62
4+
€19,46
9+
€19,23
19+
€19,00
49+
€18,77
99+
€18,54
499+
€17,38
999+
€17,15
1999+
€16,91
2999+
€16,68
4999+
€16,22
Quantity
Couldn't load pickup availability
Share this product
Description
Description
NTN NATV Type Track Rollers: These track rollers are premium-quality, double-sealed cam followers designed for smooth and reliable motion in demanding applications. Built with precision needle roller bearings and a thick-walled outer ring, these rollers provide exceptional load-carrying capacity, wear resistance, and long service life even under heavy or shock loads. The integrated design ensures easy installation and maintenance-free operation, making them ideal for use in automation equipment, conveyors, cam drives, and linear motion systems.
Benefits: High load capacity, durable and reliable, easy installation
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 30mm
- Width:
- 14mm
Technical
Technical

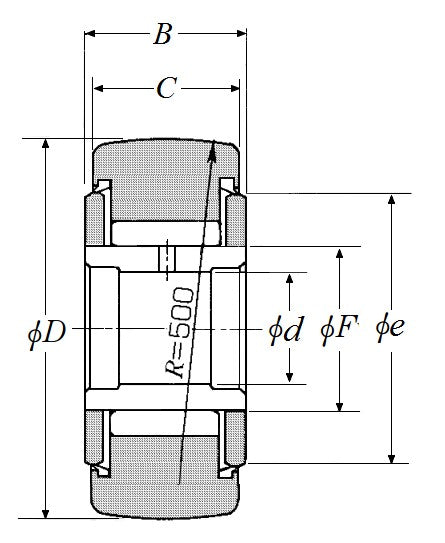

| d - Inside diameter | 10mm |
|---|---|
| D - Outside diameter | 30mm |
| C - Outer ring width | 14mm |
| F - Under roller diameter | 15mm |
| B - Bearing width | 15mm |
| e - Inlet diameter | 23mm |
| R - Track roller radius | 500mm |
| Bearing with/without cage | Without |
| Radial clearance class | CN |
| Precision class | P0 |
| Cr - Dynamic load rating | 12 kN |
| C0r - Static load rating | 20.3 kN |
| Track load capacity | 2.62 kN |
| N - Grease lubrication limit speed | 6500 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
