SKU: NAX.2530.Z

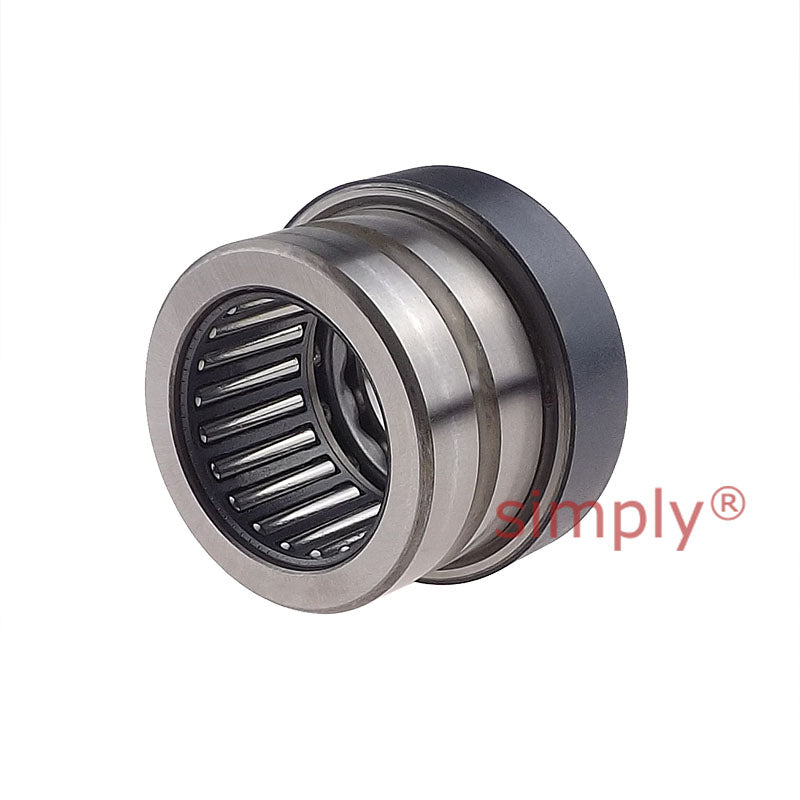

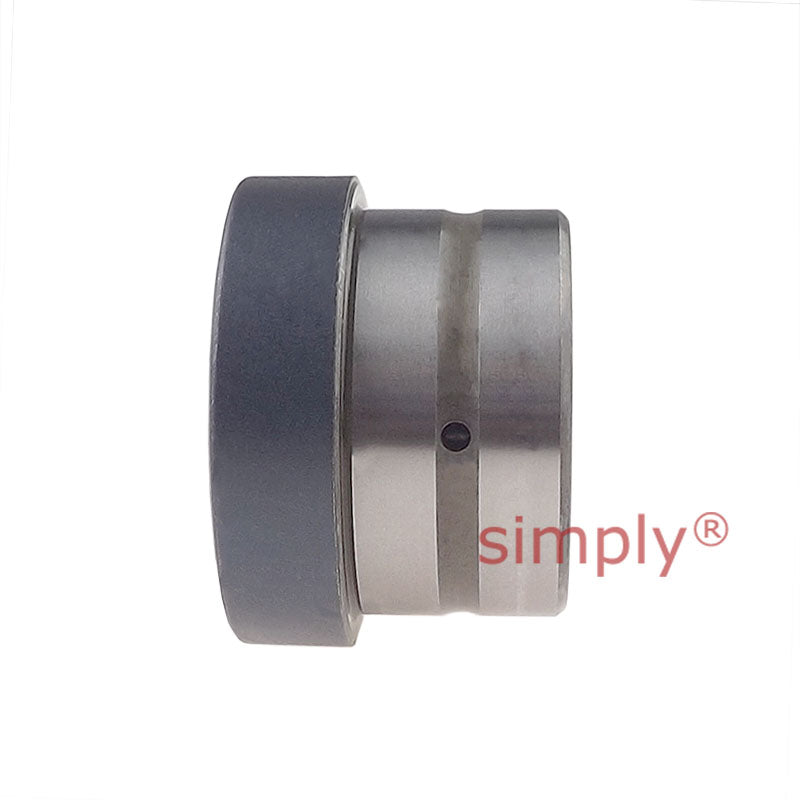

NAX2530Z Needle Roller With Thrust Ball Bearing and Dust Cover 25x43x30mm
NAX2530Z Needle Roller With Thrust Ball Bearing and Dust Cover 25x43x30mm
Regular price
€45,28
ex VAT
Regular price
Sale price
€45,28
ex VAT
In stock
Price Break
10+
€34,41
20+
€32,48
30+
€32,09
40+
€31,70
50+
€31,32
75+
€30,93
100+
€29,00
200+
€28,61
250+
€28,22
500+
€27,84
1000+
€27,06
Quantity
Couldn't load pickup availability
Share this product
Description
Description
IKO NAX Needle Roller / Ball Thrust Combination: Of a non separable design has a cover attached to the housing washer which extends over the needle roller bearing outer ring, these are particularly suited to grease lubrication as the cover acts to retain the lubricant. They are able to support heavy single direction thrust loads in addition to radial loads, they also permit relatively high speed operation.
Benefits: High speed / thrust loading, grease lubrication, non separable - easily mounted
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 43mm
- Length:
- 30mm
Technical
Technical
| Fw | 25mm |
|---|---|
| D | 37mm |
| D1 | 43mm |
| L | 30mm |
| H | 11mm |
| l1 | 9.5mm |
| rs min | 0.6mm |
| di | 25mm |
| da Min | 35mm |
| Dynamic load | 20000 N |
| Axial dynamic load | 19600 N |
| Static load | 32100 N |
| Axial static load | 29700 N |
| Allowable Rotational Speed | 7000rpm |
| Weight | 135g |
