SKU: NJ210-CDX

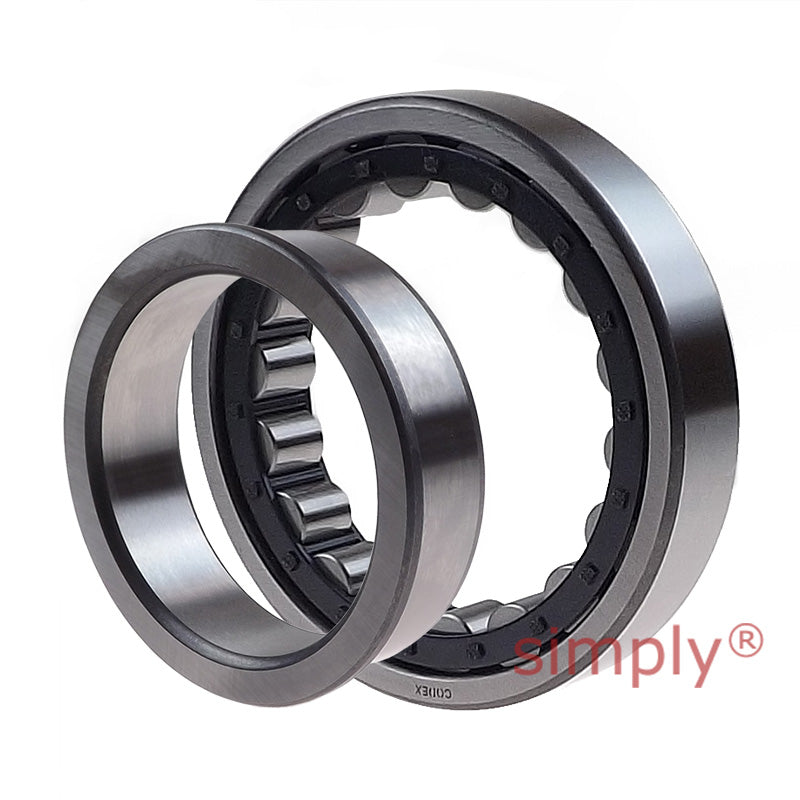

Codex NJ210 Single Row Cylindrical Roller Bearing 50x90x20mm
- Regular price
- €50.18 ex VAT
- Sale price
- €50,18
- Regular price
-
In stock
Quantity Price Breaks
10
€44.66
19
€42.15
29
€41.65
39
€41.15
49
€40.65
74
€40.14
99
€37.64
199
€37.13
249
€36.63
499
€36.13
999
€35.13
SKU:
NJ210-CDX
Codex NJ210 Single Row Cylindrical Roller Bearing 50x90x20mm
- Regular price
- €50.18 ex VAT
- Sale price
- €50,18
- Regular price
-
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 50mm |
| D | = | 90mm |
| B | = | 20mm |
| Dynamic load C | = | 73.5 kN |
| Static load Co | = | 69.5 kN |
| Fatigue load limit Pu | = | 8.8 kN |
| Reference speed | = | 8500 rpm |
| Limiting speed | = | 9000 rpm |
| Weight | = | 0.49 kg |
| Cage options | = | J.M.ML |
| d1 | = | 64mm |
| D1 | = | 78mm |
| F, E | = | 59.5mm |
| r1r2 min | = | 1.1mm |
| r3r4 min | = | 1.1mm |
| s | = | 1.5mm |
| da min | = | 57mm |
| da max | = | 57mm |
| db min | = | 66mm |
| Da max | = | 83mm |
| ra max | = | 1mm |
| rb max | = | 1mm |
| kr | = | 0.15 |
| Angle ring | = | HJ210EC |
| Angle ring weight | = | 0.058kg |
| B1 | = | 5mm |
| B2 | = | 9mm |
