SKU: NJ2308-CDX

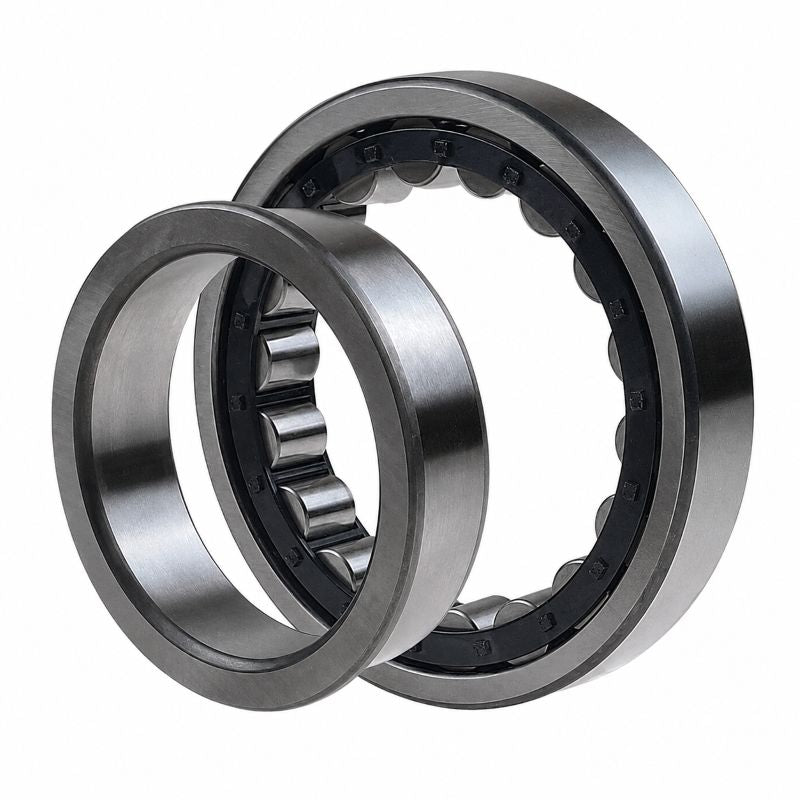

Codex NJ2308 Single Row Cylindrical Roller Bearing 40x90x33mm
- Regular price
- €67.29 ex VAT
- Sale price
- €67,29
- Regular price
-
In stock
Quantity Price Breaks
10
€59.89
19
€56.52
29
€55.85
39
€55.18
49
€54.50
74
€53.83
99
€50.47
199
€49.79
249
€49.12
499
€48.45
999
€47.10
SKU:
NJ2308-CDX
Codex NJ2308 Single Row Cylindrical Roller Bearing 40x90x33mm
- Regular price
- €67.29 ex VAT
- Sale price
- €67,29
- Regular price
-
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 40mm |
| D | = | 90mm |
| B | = | 33mm |
| Dynamic load C | = | 129 kN |
| Static load Co | = | 120 kN |
| Fatigue load limit Pu | = | 15.3 kN |
| Reference speed | = | 8000 rpm |
| Limiting speed | = | 9500 rpm |
| Weight | = | 0.95 kg |
| Cage options | = | J.M.ML |
| d1 | = | 57.5mm |
| D1 | = | 75.6mm |
| F, E | = | 52mm |
| r1r2 min | = | 1.5mm |
| r3r4 min | = | 1.5mm |
| s | = | 2.9mm |
| da min | = | 49mm |
| da max | = | 50mm |
| db min | = | 60mm |
| Da max | = | 81mm |
| ra max | = | 1.5mm |
| rb max | = | 1.5mm |
| kr | = | 0.25 |
