SKU: NJ2319ECJ/C3-SKF

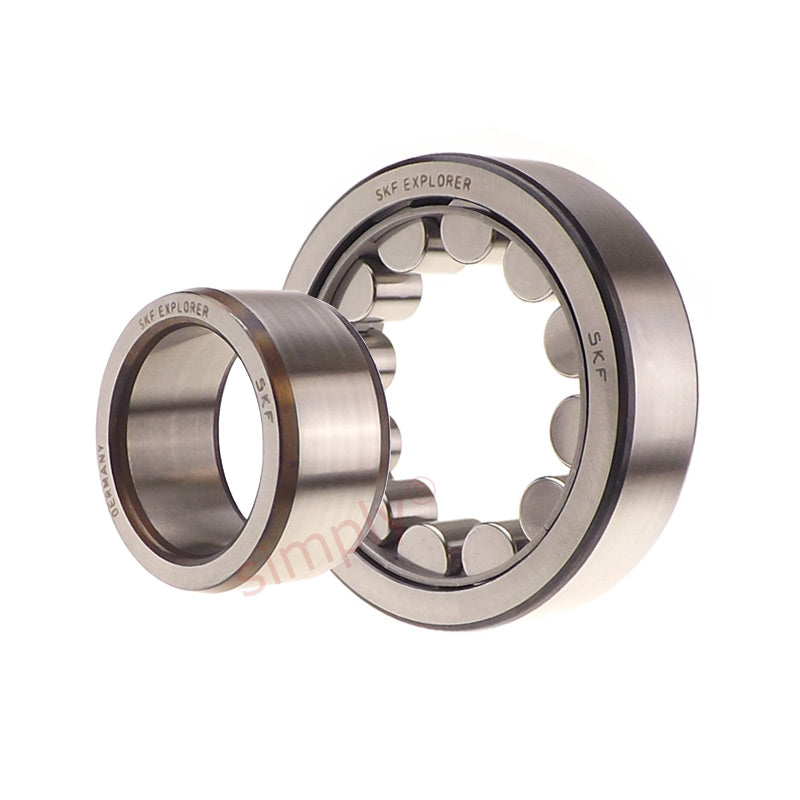

SKF NJ2319ECJC3 Single Row Cylindrical Roller Bearing with Steel Cage 95x200x67mm
SKF NJ2319ECJC3 Single Row Cylindrical Roller Bearing with Steel Cage 95x200x67mm
Out of stock
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 200mm
- Width:
- 67mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 95mm |
|---|---|
| D | 200mm |
| B | 67mm |
| Dynamic load C | 530 kN |
| Static load Co | 585 kN |
| Fatigue load limit Pu | 69.5 kN |
| Reference speed | 3600 rpm |
| Limiting speed | 4300 rpm |
| Weight | 9.55 kg |
| Alt cage | J.ML |
| d1 | 132mm |
| D1 | 170mm |
| F,E | 121.5mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| S | 6.9mm |
| da min | 109mm |
| da max | 118mm |
| db | 135mm |
| Da max | 186mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.25 |
| Angle ring | HJ2319EC |
| Angle ring weight | 0.81 kg |
| B1 | 13mm |
| B2 | 24.5mm |
