SKU: NJ2322-EU

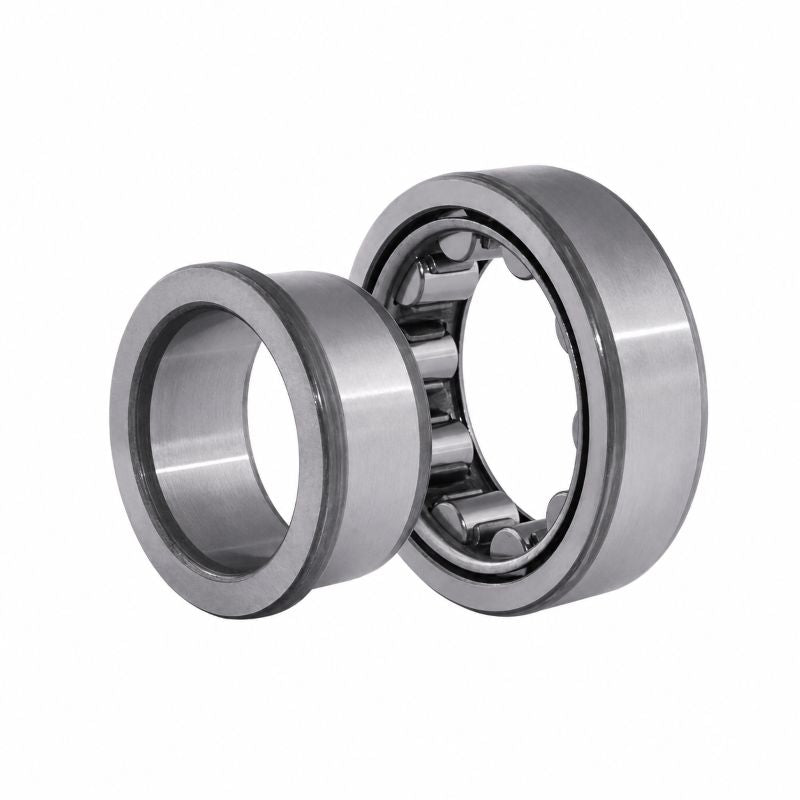

NJ2322 Budget Single Row Cylindrical Roller Bearing 110x240x80mm
NJ2322 Budget Single Row Cylindrical Roller Bearing 110x240x80mm
Out of stock
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 240mm
- Width:
- 80mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 110mm |
|---|---|
| D | 240mm |
| B | 80mm |
| Dynamic load C | 780 kN |
| Static load Co | 900 kN |
| Fatigue load limit Pu | 102 kN |
| Reference speed | 3000 rpm |
| Limiting speed | 3400 rpm |
| Weight | 17.2 kg |
| Cage options | MA |
| d1 | 155mm |
| D1 | 201mm |
| F, E | 143mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| s | 7.5mm |
| da min | 124mm |
| da max | 139mm |
| db min | 159mm |
| Da max | 226mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.25 |
| Angle ring | HJ2322EC |
| Angle ring weight | 1.25kg |
| B1 | 14mm |
| B2 | 26.5mm |
