SKU: NJ304-E-TVP2+HJ304-E

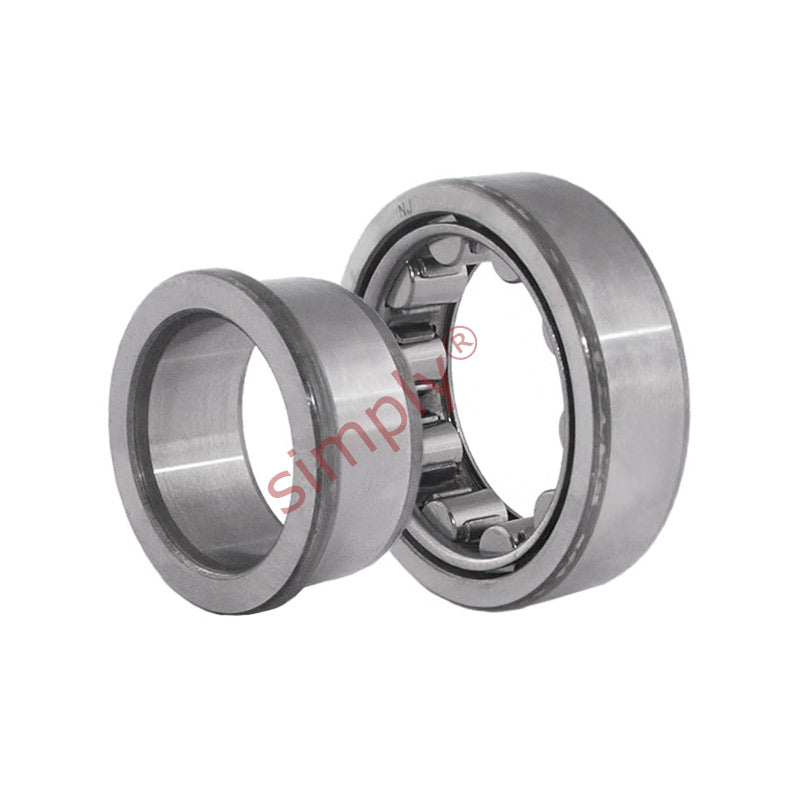

NJ304-E-TVP2 + HJ304-E X-life Cylindrical Roller Bearing with Cage and L-section Ring 20x52x15mm
NJ304-E-TVP2 + HJ304-E X-life Cylindrical Roller Bearing with Cage and L-section Ring 20x52x15mm
Out of stock
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 20 |
|---|---|
| D | 52 |
| B | 15 |
| r min | 1.1 |
| r1 min | 0.6 |
| E | 45.5 |
| F | 27.5 |
| D1 | 42.4 |
| d1 | 31.3 |
| B1 | 4 |
| B2 | 6.5 |
| da min | 24 |
| dc min | 33 |
| Da max | 45 |
| ra max | 1 |
| Dynamic load | 36500 N |
| Static load | 26000 N |
| Fatigue limit load | 4050 N |
| Limiting speed | 14000 rpm |
| Reference speed | 12100 rpm |
| L-section ring | HJ304-E |
| Bearing weight | 0.156 kg |
| L-section ring weight | 0.017 kg |
