SKU: NJ308-CDX

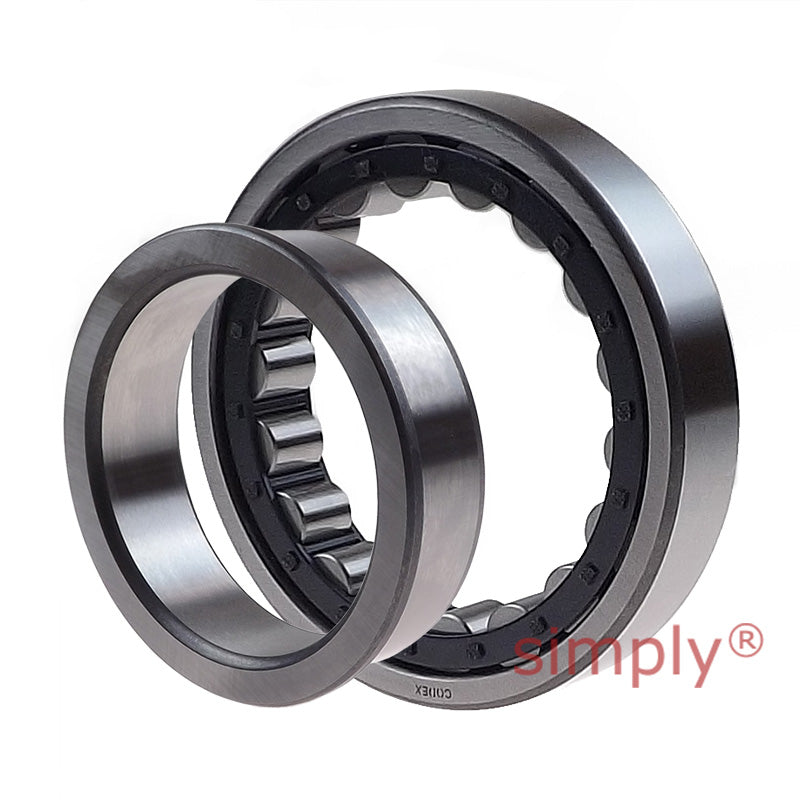

Codex NJ308 Single Row Cylindrical Roller Bearing 40x90x23mm
- Regular price
- €52.83 ex VAT
- Sale price
- €52,83
- Regular price
-
In stock
Quantity Price Breaks
10
€47.02
19
€44.38
29
€43.85
39
€43.32
49
€42.79
74
€42.26
99
€39.62
199
€39.09
249
€38.57
499
€38.04
999
€36.98
SKU:
NJ308-CDX
Codex NJ308 Single Row Cylindrical Roller Bearing 40x90x23mm
- Regular price
- €52.83 ex VAT
- Sale price
- €52,83
- Regular price
-
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 40mm |
| D | = | 90mm |
| B | = | 23mm |
| Dynamic load C | = | 93 kN |
| Static load Co | = | 78 kN |
| Fatigue load limit Pu | = | 10.2 kN |
| Reference speed | = | 8000 rpm |
| Limiting speed | = | 9500 rpm |
| Weight | = | 0.67 kg |
| Cage options | = | J.M.ML |
| d1 | = | 57.5mm |
| D1 | = | 75.6mm |
| F, E | = | 52mm |
| r1r2 min | = | 1.5mm |
| r3r4 min | = | 1.5mm |
| s | = | 1.4mm |
| da min | = | 49mm |
| da max | = | 50mm |
| db min | = | 60mm |
| Da max | = | 81mm |
| ra max | = | 1.5mm |
| rb max | = | 1.5mm |
| kr | = | 0.15 |
| Angle ring | = | HJ308EC |
| Angle ring weight | = | 0.084kg |
| B1 | = | 7mm |
| B2 | = | 11mm |
