SKU: NJ411-M1

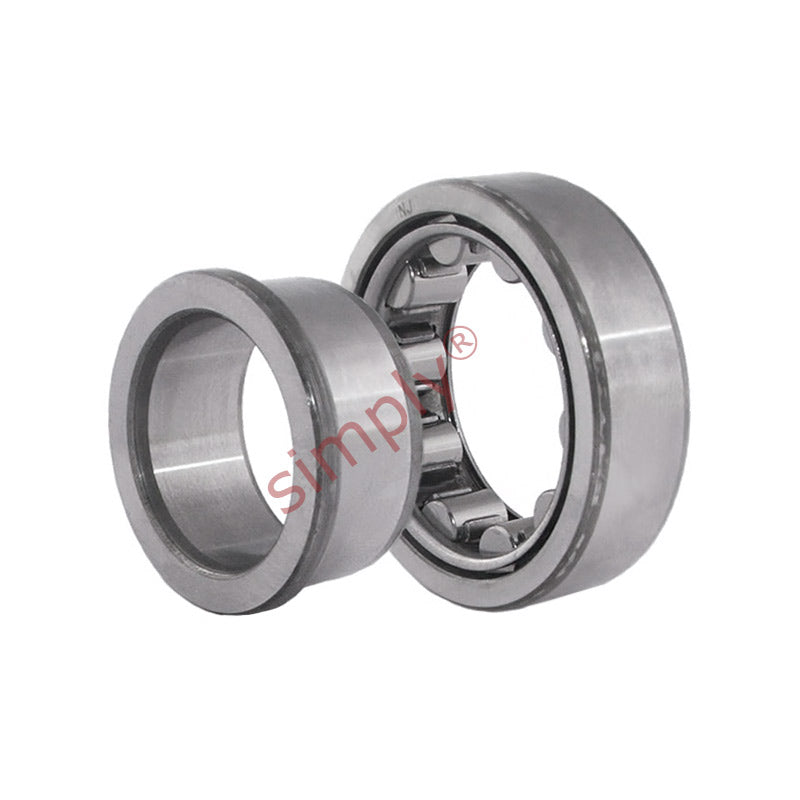

NJ411-M1 X-life Cylindrical Roller Bearing with Cage 55x140x33mm
NJ411-M1 X-life Cylindrical Roller Bearing with Cage 55x140x33mm
Out of stock
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 140mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 55 |
|---|---|
| D | 140 |
| B | 33 |
| r min | 2.1 |
| r1 min | 2.1 |
| s | 3.3 |
| E | 117.2 |
| F | 77.2 |
| D1 | 110.7 |
| d1 | 85 |
| da min | 69 |
| da max | 76 |
| dc min | 87 |
| Da max | 126 |
| ra max | 2.1 |
| Dynamic load | 187000 N |
| Static load | 164000 N |
| Fatigue limit load | 28000 N |
| Limiting speed | 8000 rpm rpm |
| Weight | 2.88 kg |
