SKU: NJ412-M1-C3+HJ412

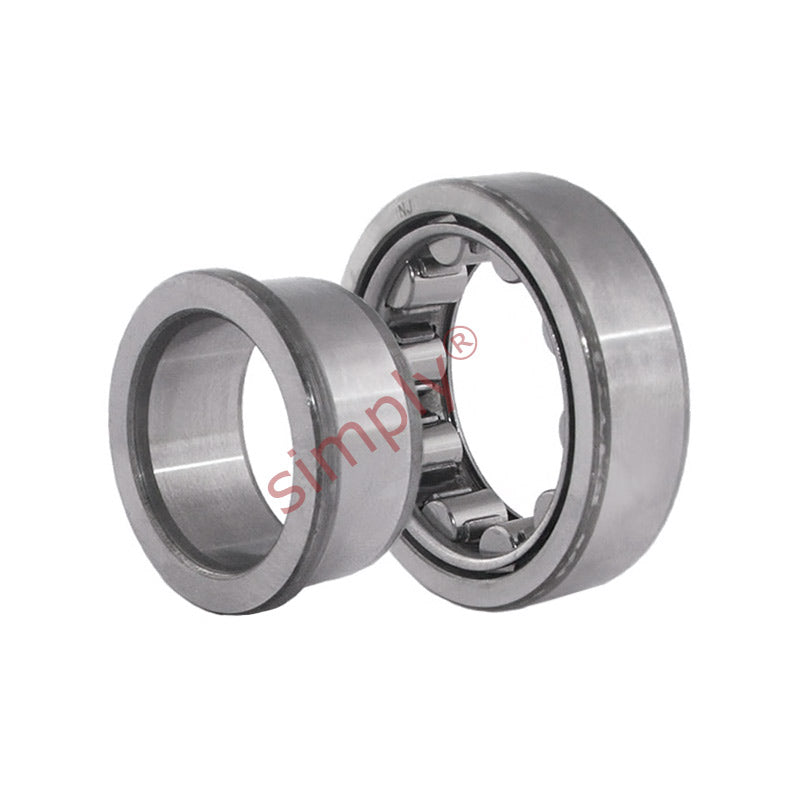

NJ412-M1-C3 + HJ412 X-life Cylindrical Roller Bearing with Cage and L-section Ring 60x150x35mm
NJ412-M1-C3 + HJ412 X-life Cylindrical Roller Bearing with Cage and L-section Ring 60x150x35mm
Out of stock
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 150mm
- Width:
- 35mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 60 |
|---|---|
| D | 150 |
| B | 35 |
| r min | 2.1 |
| r1 min | 2.1 |
| E | 127 |
| F | 83 |
| D1 | 119.5 |
| d1 | 91.6 |
| B1 | 10 |
| B2 | 16.5 |
| da min | 74 |
| dc min | 94 |
| Da max | 136 |
| ra max | 2 |
| Dynamic load | 211000 N |
| Static load | 184000 N |
| Fatigue limit load | 30500 N |
| Limiting speed | 7500 rpm rpm |
| L-section ring | HJ412 |
| Bearing weight | 3.42 kg |
| L-section ring weight | 0.347 kg |
