SKU: NJ412-SKF

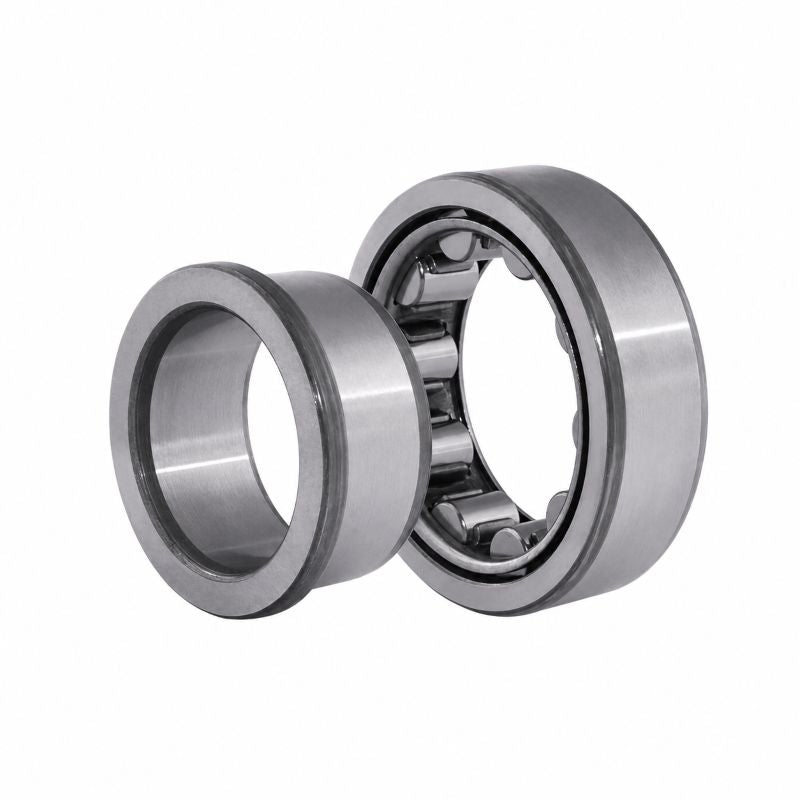

SKF NJ412 Single Row Cylindrical Roller Bearing 60x150x35mm
SKF NJ412 Single Row Cylindrical Roller Bearing 60x150x35mm
Out of stock
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 150mm
- Width:
- 35mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 60mm |
|---|---|
| D | 150mm |
| B | 35mm |
| Dynamic load C | 168 kN |
| Static load Co | 173 kN |
| Fatigue load limit Pu | 22 kN |
| Reference speed | 5000 rpm |
| Limiting speed | 6000 rpm |
| Weight | 3.1 kg |
| d1 | 91.8mm |
| D1 | 117mm |
| F,E | 83mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| S | 2.5mm |
| da min | 74mm |
| da max | 80mm |
| db | 94mm |
| Da max | 136mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
