SKU: NJ413-M1-C3

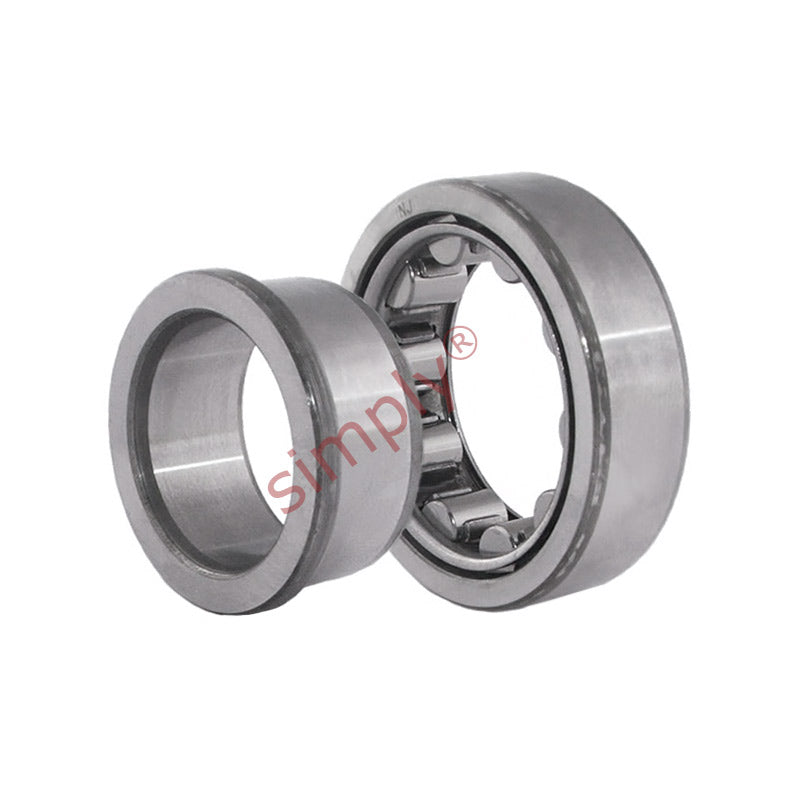

NJ413-M1-C3 X-life Cylindrical Roller Bearing with Cage 65x160x37mm
NJ413-M1-C3 X-life Cylindrical Roller Bearing with Cage 65x160x37mm
Out of stock
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 160mm
- Width:
- 37mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 65 |
|---|---|
| D | 160 |
| B | 37 |
| r min | 2.1 |
| r1 min | 2.1 |
| s | 3.5 |
| E | 135.3 |
| F | 89.3 |
| D1 | 127.7 |
| d1 | 98.3 |
| da min | 79 |
| da max | 88 |
| dc min | 100 |
| Da max | 146 |
| ra max | 2.1 |
| Dynamic load | 230000 N |
| Static load | 203000 N |
| Fatigue limit load | 33000 N |
| Limiting speed | 7000 rpm rpm |
| Weight | 4.15 kg |
