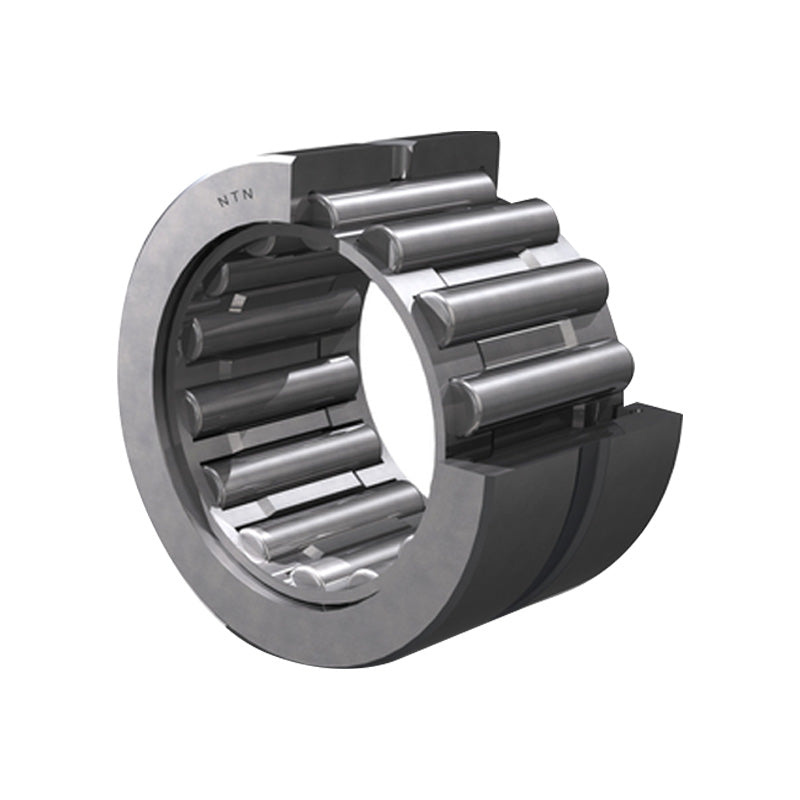

• NTN NK35/20RCT Machined Needle Roller Bearing no Shaft Sleeve 35x45x20mm
1 1

SKU: NK35/20RCT-NTN

NTN NK35/20RCT Machined Needle Roller Bearing no Shaft Sleeve 35x45x20mm

NTN NK35/20RCT Machined Needle Roller Bearing no Shaft Sleeve 35x45x20mm
€14,86 ex VAT
€14,86 ex VAT
Sale Sold out

In stock

Price Break
3+ €11,29
4+ €10,66
9+ €10,53
19+ €10,41
49+ €10,28
99+ €10,15
499+ €9,52
999+ €9,39
1999+ €9,26
2999+ €9,14
4999+ €8,88

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
CIAH7HM5FO
Brand / Quality:
NTN - High Quality
Inside Diameter:
35mm
Outside Diameter:
45mm
Width:
20mm
Technical
Fw - Under rollers diameter 35mm
D - Outside diameter 45mm
C - Width of bearing, drawn cup or outer ring 20mm
rs - Minimum fillet radius 0.3mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 24.8 kN
C0r - Static load rating 41.5 kN
N - Grease lubrication limit speed 7500 tr/min
N - Oil lubrication limit speed 11000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 43mm
ras max - Maximum shaft & housing fillet radius 0.3mm
