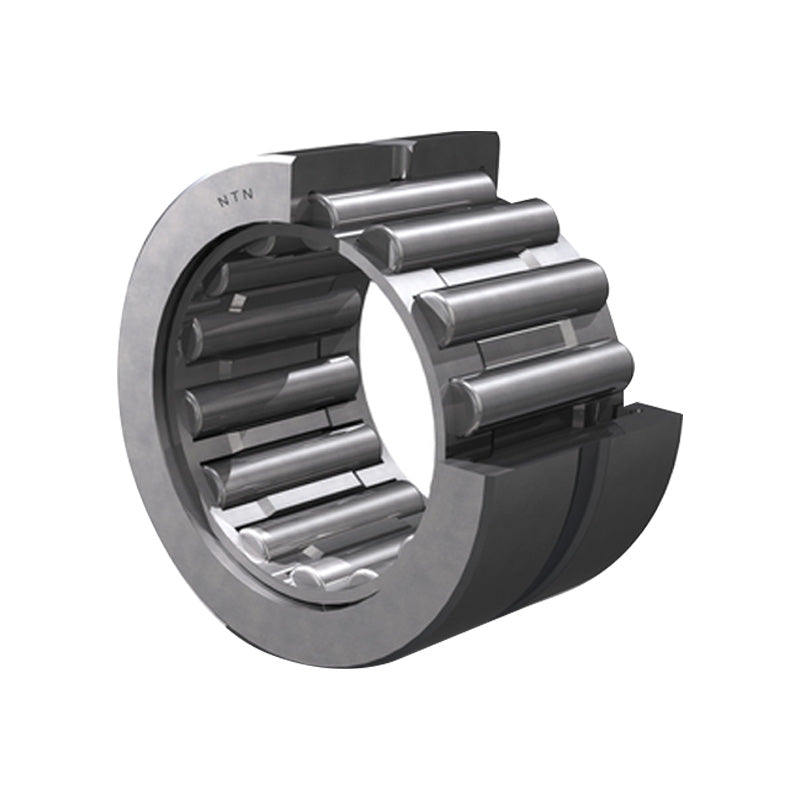

• NTN NK35/30R Machined Needle Roller Bearing no Shaft Sleeve 35x45x30mm
1 1

SKU: NK35/30R-NTN

NTN NK35/30R Machined Needle Roller Bearing no Shaft Sleeve 35x45x30mm

NTN NK35/30R Machined Needle Roller Bearing no Shaft Sleeve 35x45x30mm
€17,82 ex VAT
€17,82 ex VAT
Sale Sold out

In stock

Price Break
3+ €13,55
4+ €12,78
9+ €12,63
19+ €12,48
49+ €12,33
99+ €12,18
499+ €11,42
999+ €11,26
1999+ €11,11
2999+ €10,96
4999+ €10,65

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
CIAH7HM5FO
Brand / Quality:
NTN - High Quality
Inside Diameter:
35mm
Outside Diameter:
45mm
Width:
30mm
Technical
Fw - Under rollers diameter 35mm
D - Outside diameter 45mm
C - Width of bearing, drawn cup or outer ring 30mm
rs - Minimum fillet radius 0.3mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 36 kN
C0r - Static load rating 66.5 kN
N - Grease lubrication limit speed 7500 tr/min
N - Oil lubrication limit speed 11000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 43mm
ras max - Maximum shaft & housing fillet radius 0.3mm
