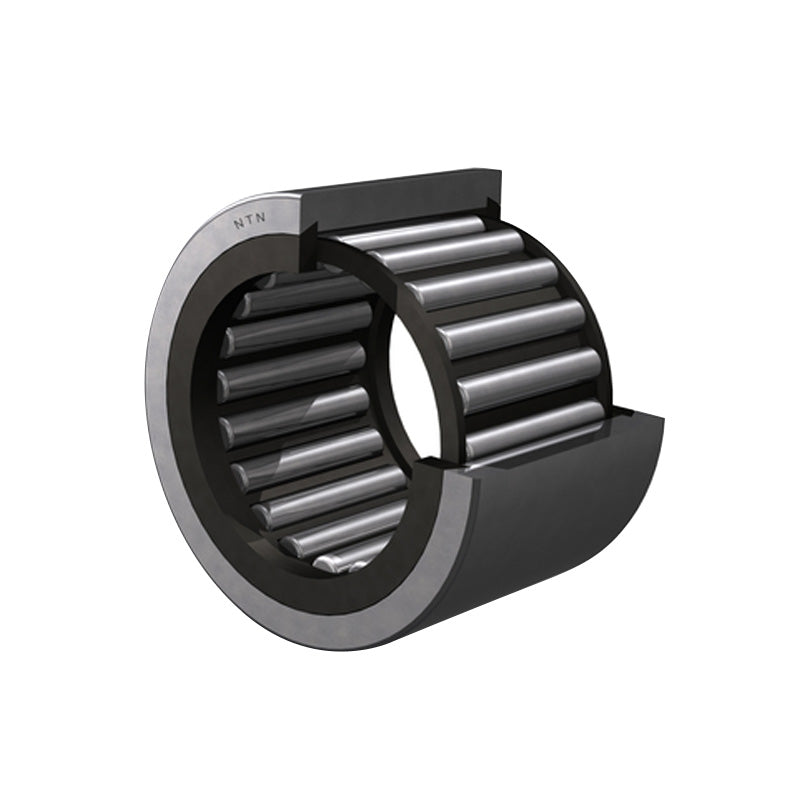

• NTN NK6/12T2 Machined Needle Roller Bearing with Polyamide Cage no Shaft Sleeve 6x12x12mm
1 1

SKU: NK6/12T2-NTN

NTN NK6/12T2 Machined Needle Roller Bearing with Polyamide Cage no Shaft Sleeve 6x12x12mm

NTN NK6/12T2 Machined Needle Roller Bearing with Polyamide Cage no Shaft Sleeve 6x12x12mm
€9,67 ex VAT
€9,67 ex VAT
Sale Sold out

In stock

Price Break
3+ €7,35
4+ €6,94
9+ €6,86
19+ €6,77
49+ €6,69
99+ €6,61
499+ €6,20
999+ €6,11
1999+ €6,03
2999+ €5,95
4999+ €5,78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
CIAH7HM5FO
Brand / Quality:
NTN - High Quality
Inside Diameter:
6mm
Outside Diameter:
12mm
Width:
12mm
Technical
Fw - Under rollers diameter 6mm
D - Outside diameter 12mm
C - Width of bearing, drawn cup or outer ring 12mm
rs - Minimum fillet radius 0.15mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 3.4 kN
C0r - Static load rating 3.15 kN
N - Grease lubrication limit speed 25000 tr/min
N - Oil lubrication limit speed 37000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +100 Deg C
Da max - Outer ring maximum shoulder diameter 7.5mm
ras max - Maximum shaft & housing fillet radius 0.15mm
