SKU: NKIS25-MB

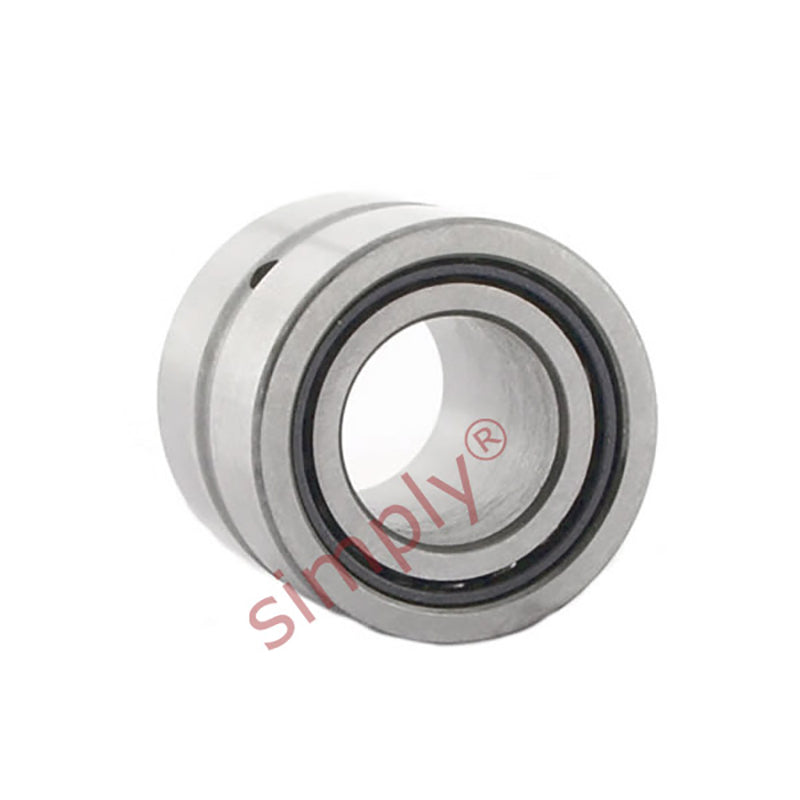

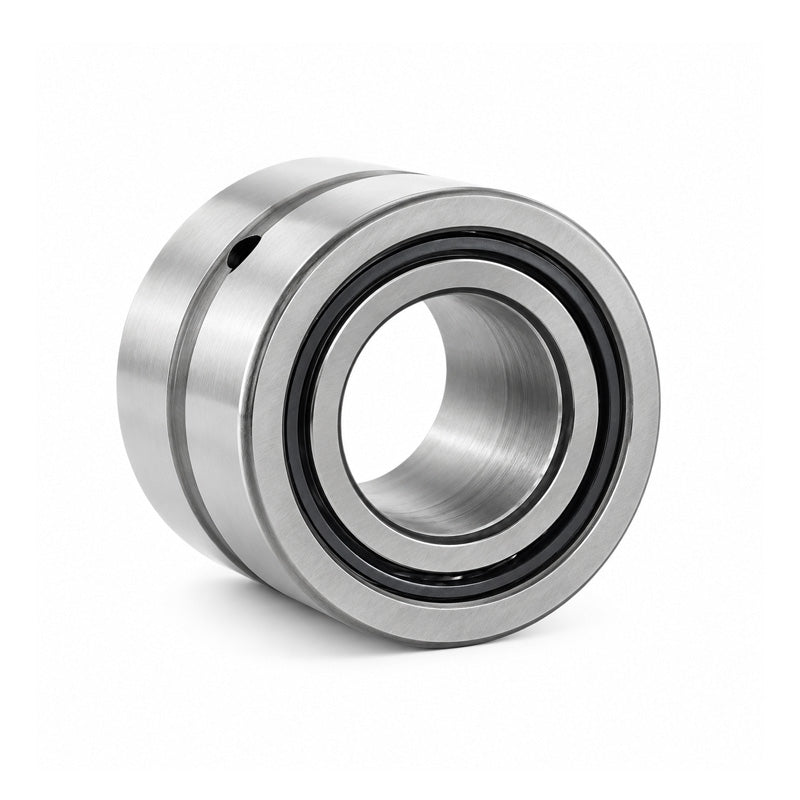

Major Brand NKIS25 Needle Roller Bearing With Shaft Sleeve 25x47x22mm

Name: Major Brand NKIS25 Needle Roller Bearing With Shaft Sleeve 25x47x22mm
Brand: Major Brand
SKU: NKIS25-MB
Price: 53.64 EUR
Availability: InStock

€53,64 ex VAT

Sale Sold out

In stock

Price Break

10+ €40,84

19+ €38,55

29+ €38,09

39+ €37,63

49+ €37,17

74+ €36,71

99+ €34,42

199+ €33,96

249+ €33,50

499+ €33,04

999+ €32,12

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve
Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 25mm
Outside Diameter:: 47mm
Width:: 22mm

Technical

d	25mm
D	47mm
B	22mm
Dynamic load	34100 N
Static load	46500 N
Fatigue load limit Pu	6000 N
Speed in grease	8000 rpm
Speed in oil	12000 rpm
F	32mm
r1r2	0.6mm
S (axial disp)	1mm
da min	29mm
Da max	43mm
ra max	0.6mm
