SKU: NKIS35-MB

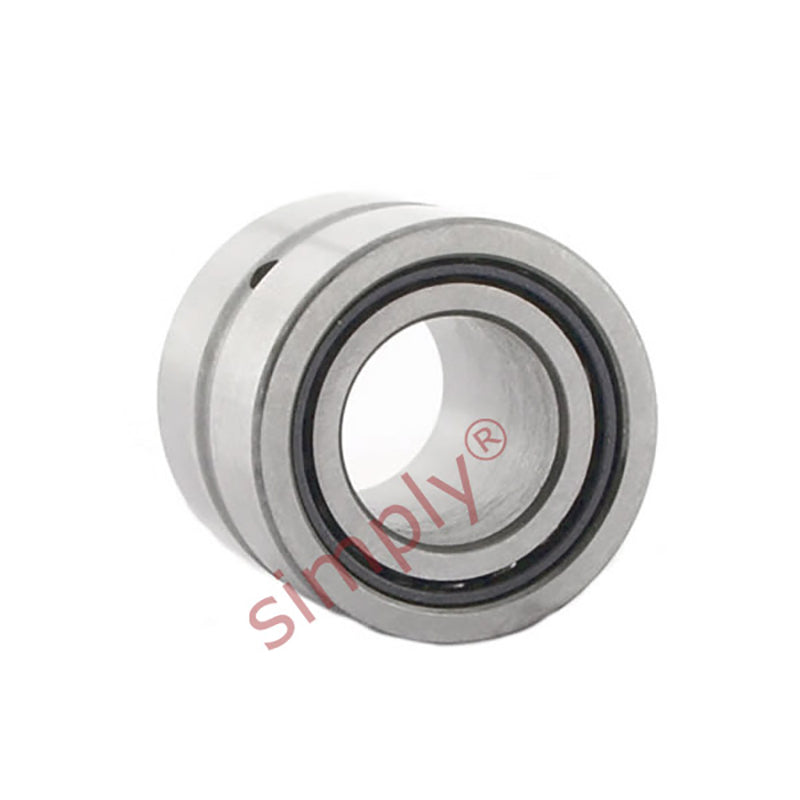

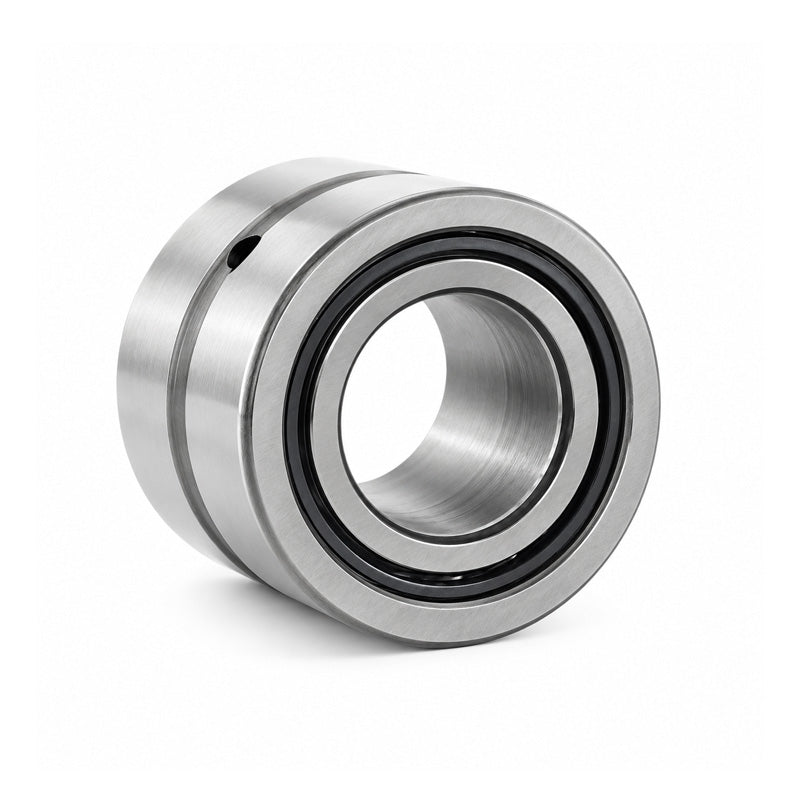

Major Brand NKIS35 Needle Roller Bearing With Shaft Sleeve 35x58x22mm

Name: Major Brand NKIS35 Needle Roller Bearing With Shaft Sleeve 35x58x22mm
Brand: Major Brand
SKU: NKIS35-MB
Price: 70.95 EUR
Availability: InStock

€70,95 ex VAT

Sale Sold out

In stock

Price Break

10+ €54,02

19+ €50,98

29+ €50,38

39+ €49,77

49+ €49,16

74+ €48,56

99+ €45,52

199+ €44,92

249+ €44,31

499+ €43,70

999+ €42,49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve
Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 35mm
Outside Diameter:: 58mm
Width:: 22mm

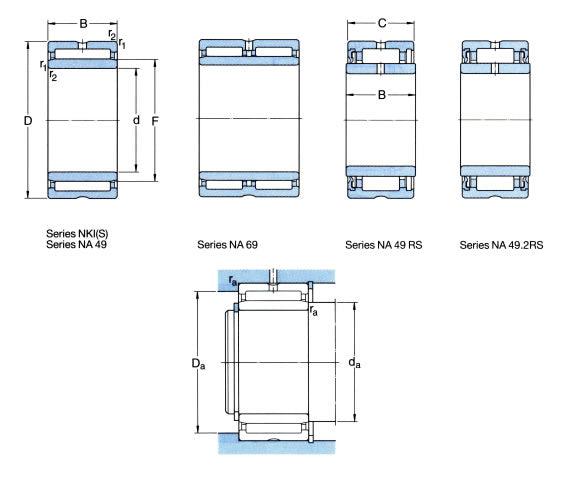

Technical

d	35mm
D	58mm
B	22mm
Dynamic load	39100 N
Static load	61000 N
Fatigue load limit Pu	7800 N
Speed in grease	6300 rpm
Speed in oil	9000 rpm
F	43mm
r1r2	0.6mm
S (axial disp)	0.5mm
da min	39mm
Da max	54mm
ra max	0.6mm
