SKU: NKIS65-MB

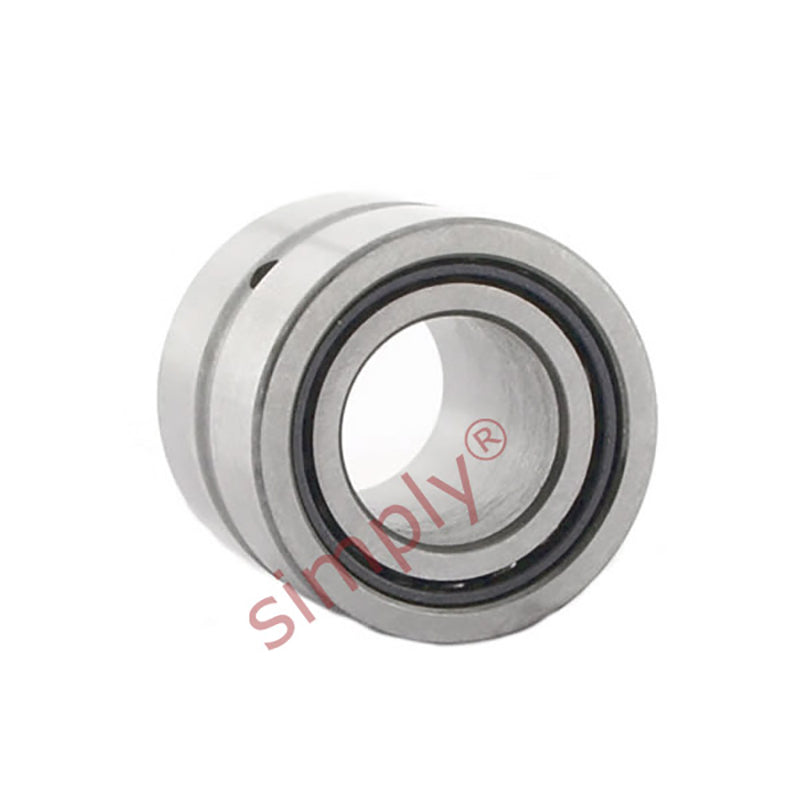

Major Brand NKIS65 Needle Roller Bearing With Shaft Sleeve 65x95x28mm
- Regular price
- €160.92 ex VAT
- Sale price
- €160,92
- Regular price
-
Not in stock
Quantity Price Breaks
10
€143.22
19
€135.17
29
€133.56
39
€131.95
49
€130.35
74
€128.74
99
€120.69
199
€119.08
249
€117.47
499
€115.86
999
€112.64
SKU:
NKIS65-MB
Major Brand NKIS65 Needle Roller Bearing With Shaft Sleeve 65x95x28mm
- Regular price
- €160.92 ex VAT
- Sale price
- €160,92
- Regular price
-
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
Technical
| d | = | 65mm |
| D | = | 95mm |
| B | = | 28mm |
| Dynamic load | = | 70400 N |
| Static load | = | 132000 N |
| Fatigue load limit Pu | = | 17000 N |
| Speed in grease | = | 3800 rpm |
| Speed in oil | = | 5300 rpm |
| F | = | 75mm |
| r1r2 | = | 1.1mm |
| S (axial disp) | = | 2mm |
| da min | = | 71.5mm |
| Da max | = | 88.5mm |
| ra max | = | 1mm |
