SKU: NN3013 KTN/SP-SKF

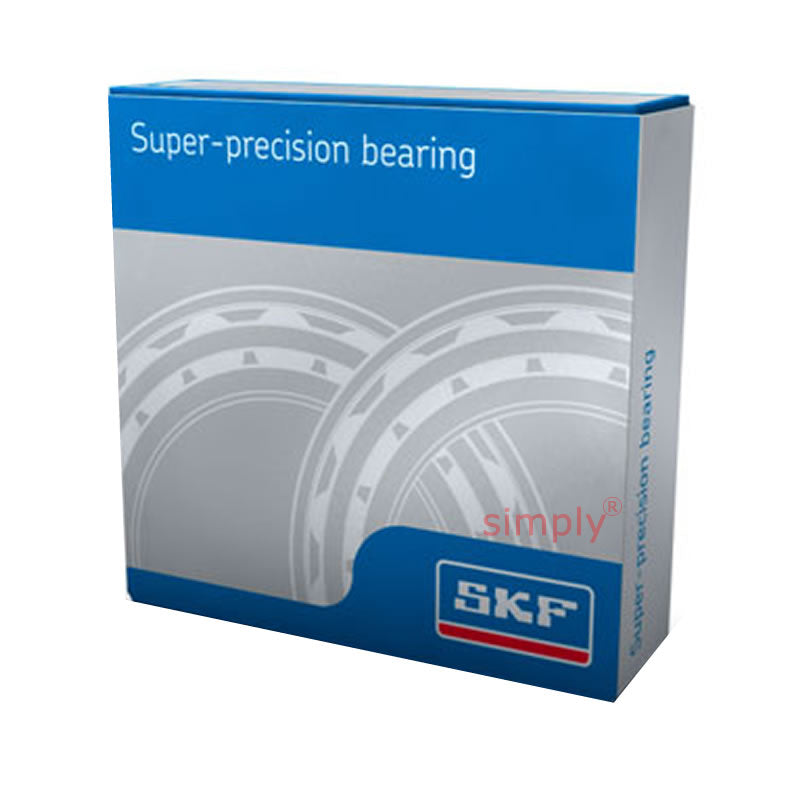

SKF NN3013KTNSP Super Precision Double Row Cylindrical Roller Spindle Bearing 65x100x26mm
- Regular price
- €275.95 ex VAT
- Sale price
- €275,95
- Regular price
-
Quantity Price Breaks
SKF NN3013KTNSP Super Precision Double Row Cylindrical Roller Spindle Bearing 65x100x26mm
- Regular price
- €275.95 ex VAT
- Sale price
- €275,95
- Regular price
-
Description
SKF Super Precision Double Row Cylindrical Roller Bearings: Double row cylindrical roller bearings SKF super-precision double row cylindrical roller bearings are manufactured as standard in the NN 30 and NNU 49 series. Both series are available with either a cylindrical or a 1:12 tapered bore (designation suffix K). In machine tool applications, cylindrical roller bearings with a tapered bore are preferred over bearings with a cylindrical bore, because the taper enables more accurate adjustment of clearance or preload during mounting.
Benefits: High-speed capability, high radial load carrying capacity, high rigidity, low friction, low cross-sectional height.
Technical
| --- | = | Bearing Dimensions |
| d | = | 65mm |
| D | = | 100mm |
| B | = | 26mm |
| --- | = | Speeds and loads |
| Dynamic load C | = | 76.5 Kn |
| Static load C< | = | sub> |
| o< | = | /sub> |
| = | 116 kn | |
| Fatigue load P< | = | sub> |
| u< | = | /sub> |
| = | 13.7 kN | |
| Speed in grease | = | 9000rpm |
| Speeed in oil | = | 10000rpm |
| Weight | = | 0.71kg |
| --- | = | Abutment and fillet dimensions |
| d< | = | sub> |
| 1< | = | /sub> |
| = | 78.2mm | |
| E | = | 91mm |
| r< | = | sub> |
| 1 and 2 min< | = | /sub> |
| = | 1.1mm | |
| r< | = | sub> |
| 3 and 4 min< | = | /sub> |
| = | 0.6mm | |
| S< | = | sup> |
| 2< | = | /sup> |
| = | 1.5mm | |
| d< | = | sub> |
| a< | = | /sub> |
| min | = | 71.5mm |
| D< | = | sub> |
| a min< | = | /sub> |
| = | 92mm | |
| D< | = | sub> |
| a max< | = | /sub> |
| = | 93.5mm | |
| d< | = | sub> |
| n< | = | /sub> |
| = | 1mm | |
| d< | = | sub> |
| n< | = | /sub> |
| = | 89.7mm | |
| Reference grease quantity | = | 4.1 grams |
| = | N/A |
