SKU: NN3020 KTN9/SP-SKF

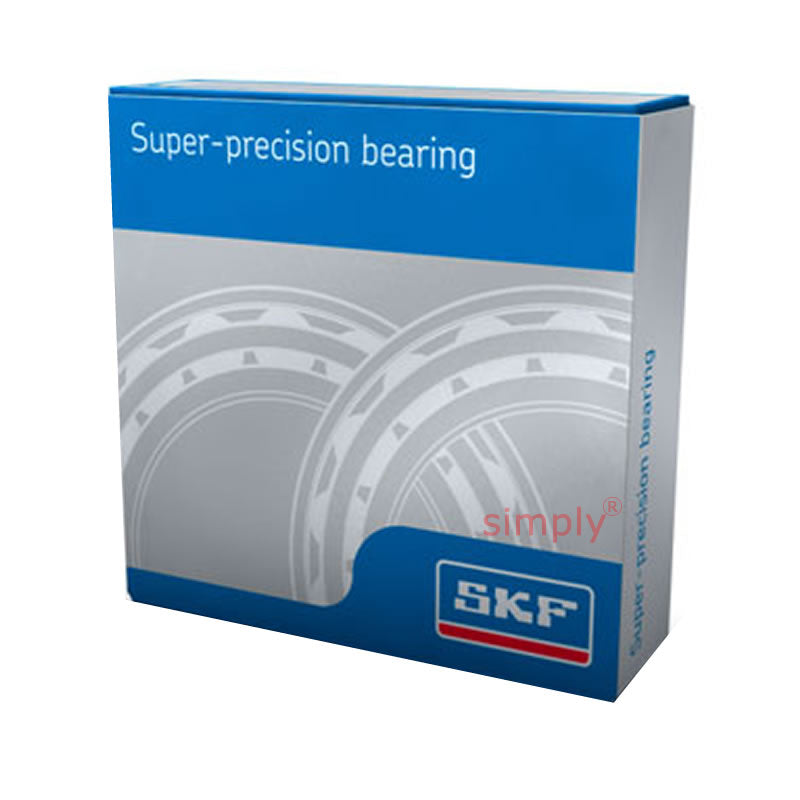

SKF NN3020KTN9SP Super Precision Double Row Cylindrical Roller Spindle Bearing 100x150x37mm
- Regular price
- €363.32 ex VAT
- Sale price
- €363,32
- Regular price
-
Quantity Price Breaks
SKF NN3020KTN9SP Super Precision Double Row Cylindrical Roller Spindle Bearing 100x150x37mm
- Regular price
- €363.32 ex VAT
- Sale price
- €363,32
- Regular price
-
Description
SKF Super Precision Double Row Cylindrical Roller Bearings: Double row cylindrical roller bearings SKF super-precision double row cylindrical roller bearings are manufactured as standard in the NN 30 and NNU 49 series. Both series are available with either a cylindrical or a 1:12 tapered bore (designation suffix K). In machine tool applications, cylindrical roller bearings with a tapered bore are preferred over bearings with a cylindrical bore, because the taper enables more accurate adjustment of clearance or preload during mounting.
Benefits: High-speed capability, high radial load carrying capacity, high rigidity, low friction, low cross-sectional height.
Technical
| --- | = | Bearing Dimensions |
| d | = | 100mm |
| D | = | 150mm |
| B | = | 37mm |
| --- | = | Speeds and loads |
| Dynamic load C | = | 151 Kn |
| Static load C< | = | sub> |
| o< | = | /sub> |
| = | 250 kn | |
| Fatigue load P< | = | sub> |
| u< | = | /sub> |
| = | 29 kN | |
| Speed in grease | = | 5600rpm |
| Speeed in oil | = | 6300rpm |
| Weight | = | 2.1kg |
| --- | = | Abutment and fillet dimensions |
| d< | = | sub> |
| 1< | = | /sub> |
| = | 119.4mm | |
| E | = | 137mm |
| r< | = | sub> |
| 1 and 2 min< | = | /sub> |
| = | 1.5mm | |
| r< | = | sub> |
| 3 and 4 min< | = | /sub> |
| = | 1mm | |
| S< | = | sup> |
| 2< | = | /sup> |
| = | 2mm | |
| d< | = | sub> |
| a< | = | /sub> |
| min | = | 108mm |
| D< | = | sub> |
| a min< | = | /sub> |
| = | 139mm | |
| D< | = | sub> |
| a max< | = | /sub> |
| = | 142mm | |
| d< | = | sub> |
| n< | = | /sub> |
| = | 1.5mm | |
| d< | = | sub> |
| n< | = | /sub> |
| = | 135.3mm | |
| Reference grease quantity | = | 12 grams |
| = | N/A |
