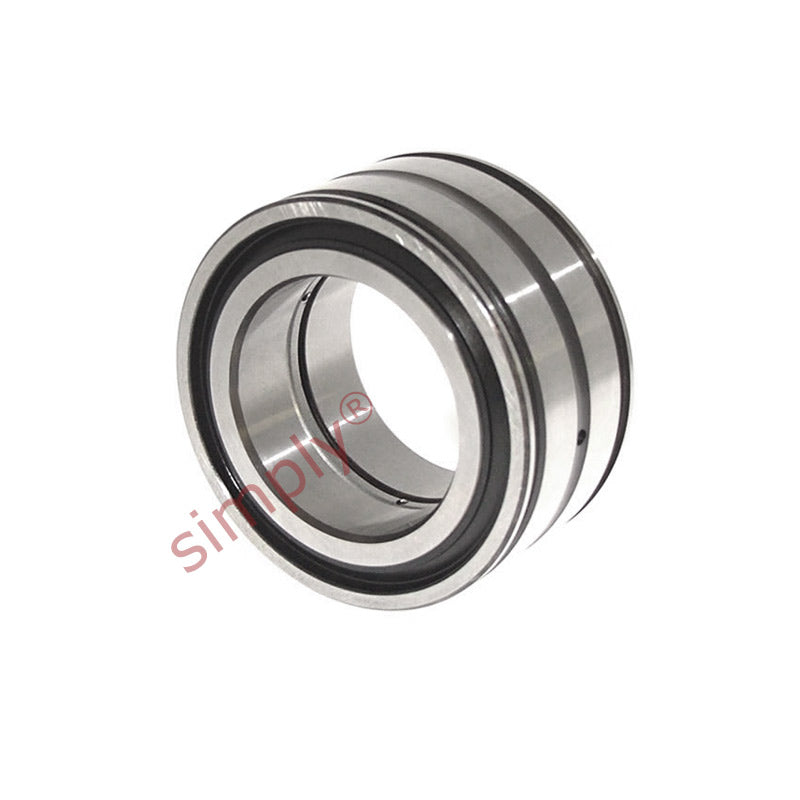

SKF NNF5032ADA2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 160x240x109mm

Name: SKF NNF5032ADA2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 160x240x109mm
Brand: SKF
SKU: NNF5032ADA-2LSV-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF NNF - LSV Series Double Row Full Complement Cylindrical Roller Bearings: The outer ring has a central flange and a two piece inner ring which has two flanges on each half, each half is held together by a retaining ring which also retains the outer ring, each bearing is supplied assembled with two rubber seals. The outer race is 1mm narrower than the inner and is supplied with two snap rings grooves for alternative mounting arrangements with sleeves etc.
Benefits: Snap ring groove location, sealed and greased, tilting moment tolerant

Brand / Quality:: SKF - High Quality
Inside Diameter:: 160mm
Outside Diameter:: 240mm
Width:: 109mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

d	160mm
D	240mm
B	109mm
C	108mm
Dynamic load C	781 kN
Static load Co	1400 kN
Fatigue load limit Pu	153 kN
Limiting speed	500 rpm
Weight	16.5 kg
d1	191mm
D1	236mm
E	222.6mm
C1+0.2	95.2mm
C2	6.4mm
b	5.2mm
b1	7mm
K	4mm
r min	2mm
r3r4 min	0.6mm
da min	167mm
das	186mm
Da max	235mm
Ca1 - 0.2	89mm
Ca2 - 0.2	85mm
ra max	2mm
rb max	0.6mm
Snap ring	SW240
Din 471	240x5
