SKU: NTA1423-TRA1423-MB

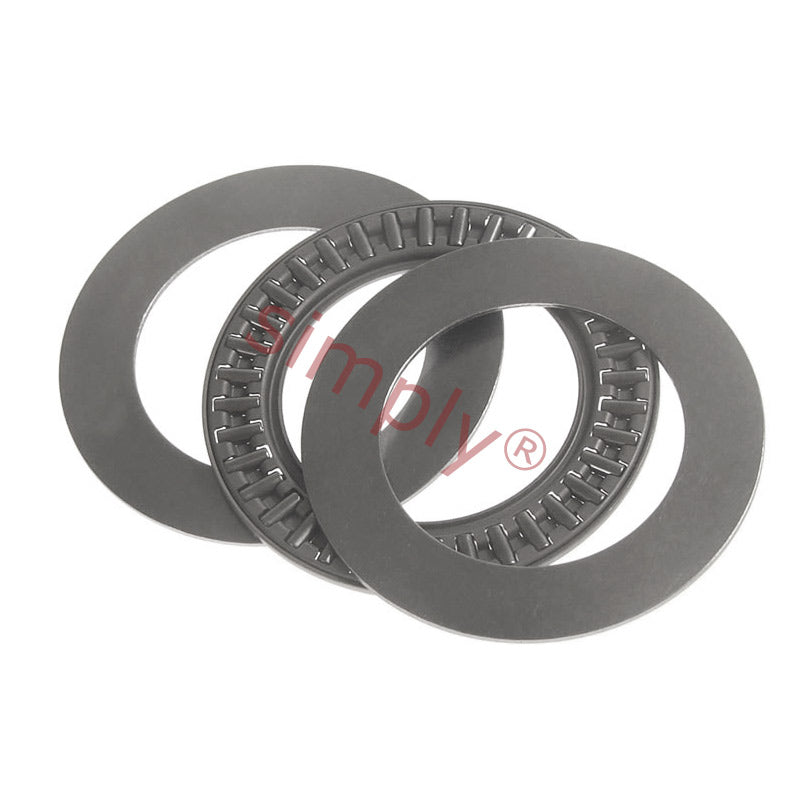

Major Brand NTA1423 Needle Roller Cage Thrust Assembly with 2 TRA1423 Washers 0.875x1.437x0.1406 inch
Major Brand NTA1423 Needle Roller Cage Thrust Assembly with 2 TRA1423 Washers 0.875x1.437x0.1406 inch
Equivalent to: NTC1423+TRA1423
Out of stock
Description
Description
|
NTA Imperial Series Needle Thrust Bearings Complete: Needle roller cage thrust assemblies complete with 2 TRA series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Outside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Width:
- 3.57mm = 0.141 (9/64) inch
Technical
Technical
| d | 0.875 inch |
|---|---|
| D | 1.437 inch |
| Eb | 0.0806 inch |
| Dw | 0.96 inch |
| dw | 1.33 inch |
| Dynamic load | 13.43 kN |
| Static load | 49.82 kN |
| Limiting speed | 1200 rpm |
| Weight | 0.004994 kg |
| Washer | Dimensions |
| d | 0.875 inch |
| d1 | 1.437 inch |
| h min | 0.03 inch |
| h max | 0.032 inch |
| Pilot min | 0.872 inch |
| Pilot max | 0.875 inch |
| Dia to clear washer | 1.469 inch |
| Weight | 0.009 lbs |
