SKU: NTA4052-TRA4052

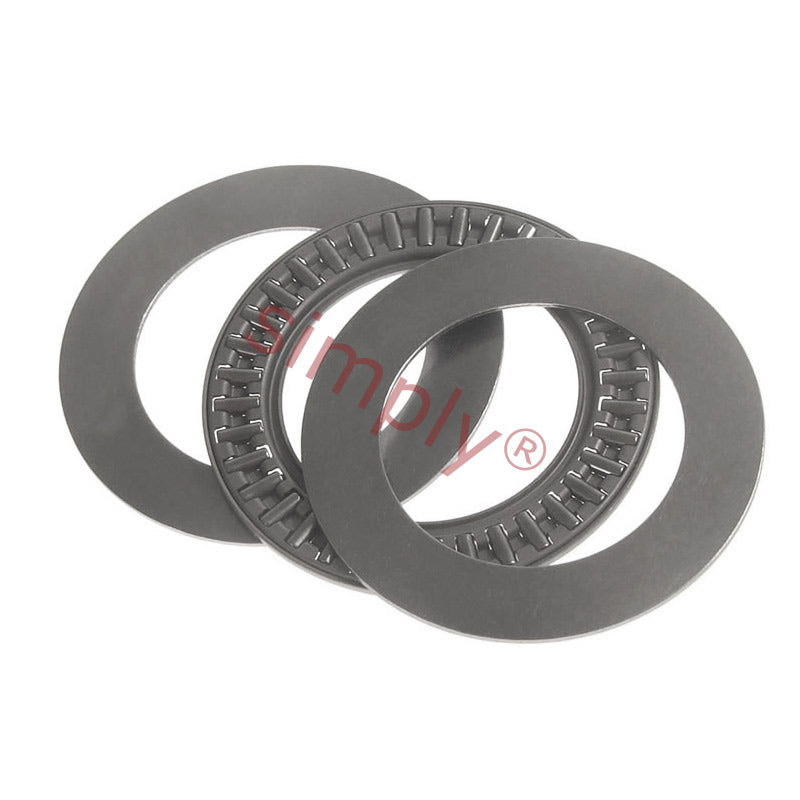

NTA4052 Needle Roller Cage Thrust Assembly with 2 TRA4052 Washers 2.5x3.25x0.1406 inch
NTA4052 Needle Roller Cage Thrust Assembly with 2 TRA4052 Washers 2.5x3.25x0.1406 inch
Regular price
€21,01
ex VAT
Regular price
Sale price
€21,01
ex VAT
Equivalent to: NTC4052+TRA4052
In stock
Price Break
10+
€15,97
19+
€15,07
29+
€14,89
39+
€14,71
49+
€14,53
74+
€14,35
99+
€13,46
199+
€13,28
249+
€13,10
499+
€12,92
999+
€12,56
Quantity
Couldn't load pickup availability
Description
Description
|
NTA Imperial Series Needle Thrust Bearings Complete: Needle roller cage thrust assemblies complete with 2 TRA series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Outside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Width:
- 3.57mm = 0.141 (9/64) inch
Technical
Technical

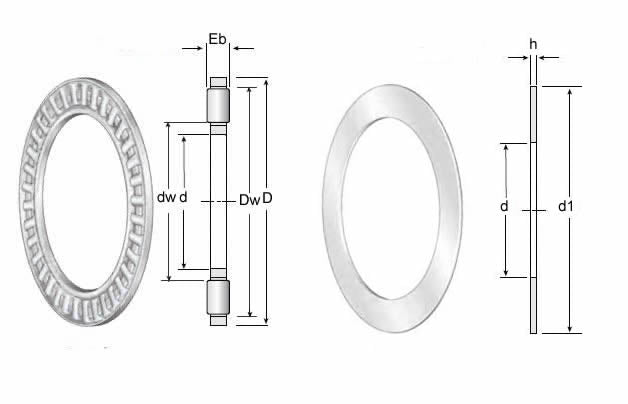

| d | 2.5 inch |
|---|---|
| D | 3.25 inch |
| Eb | 0.0806 inch |
| Dw | 2.59 inch |
| dw | 3.07 inch |
| Dynamic load | 25.53 kN |
| Static load | 152.13 kN |
| Limiting speed | 5100 rpm |
| Weight | 0.018614 kg |
| Washer | Dimensions |
| d | 2.500 inch |
| d1 | 3.25 inch |
| h min | 0.03 inch |
| h max | 0.032 inch |
| Pilot min | 2.497 inch |
| Pilot max | 2.500 inch |
| Dia to clear washer | 3.281 inch |
| Weight | 0.029 lbs |
