SKU: NTA5266-TRA5266-MB

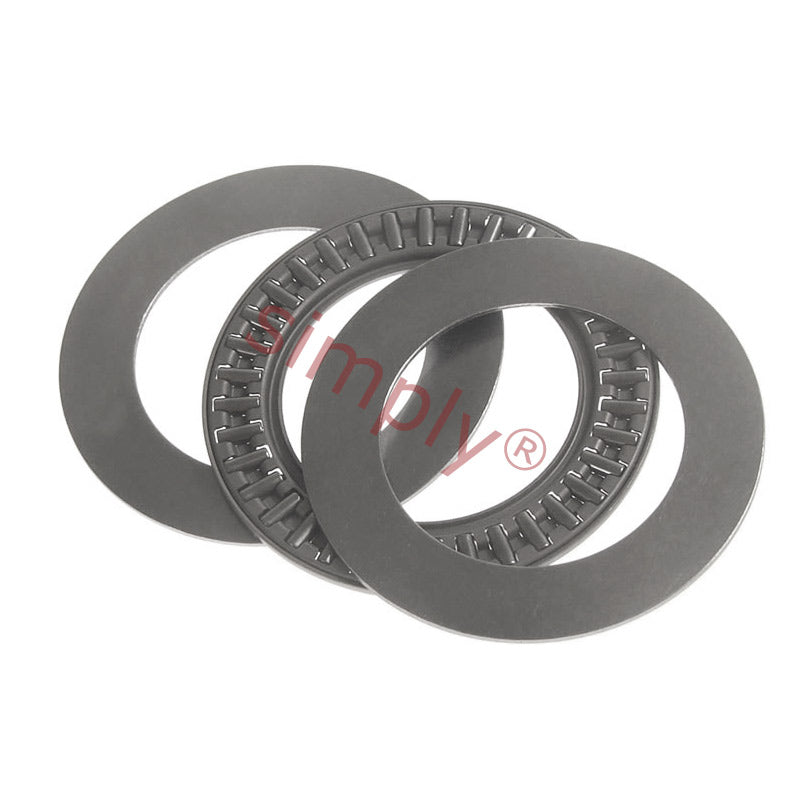

Major Brand NTA5266 Needle Roller Cage Thrust Assembly with 2 TRA5266 Washers 3.25x4.125x0.1875 inch
Major Brand NTA5266 Needle Roller Cage Thrust Assembly with 2 TRA5266 Washers 3.25x4.125x0.1875 inch
Equivalent to: NTC5266+TRA5266
Out of stock
Description
Description
|
NTA Imperial Series Needle Thrust Bearings Complete: Needle roller cage thrust assemblies complete with 2 TRA series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Outside Diameter:
- 104.78mm = 4.125 (4-1/8) inch
- Width:
- 4.76mm = 0.187 (3/16) inch
Technical
Technical
| d | 3.25 inch |
|---|---|
| D | 4.125 inch |
| Eb | 0.1275 inch |
| Dw | 3.36 inch |
| dw | 3.96 inch |
| Dynamic load | 51.60 kN |
| Static load | 294.90 kN |
| Limiting speed | 4000 rpm |
| Weight | 0.041768 kg |
| Washer | Dimensions |
| d | 3.250 inch |
| d1 | 4.125 inch |
| h min | 0.03 inch |
| h max | 0.032 inch |
| Pilot min | 3.247 inch |
| Pilot max | 3.250 inch |
| Dia to clear washer | 4.156 inch |
| Weight | 0.044 lbs |
