SKU: NTA815-TRA815-MB

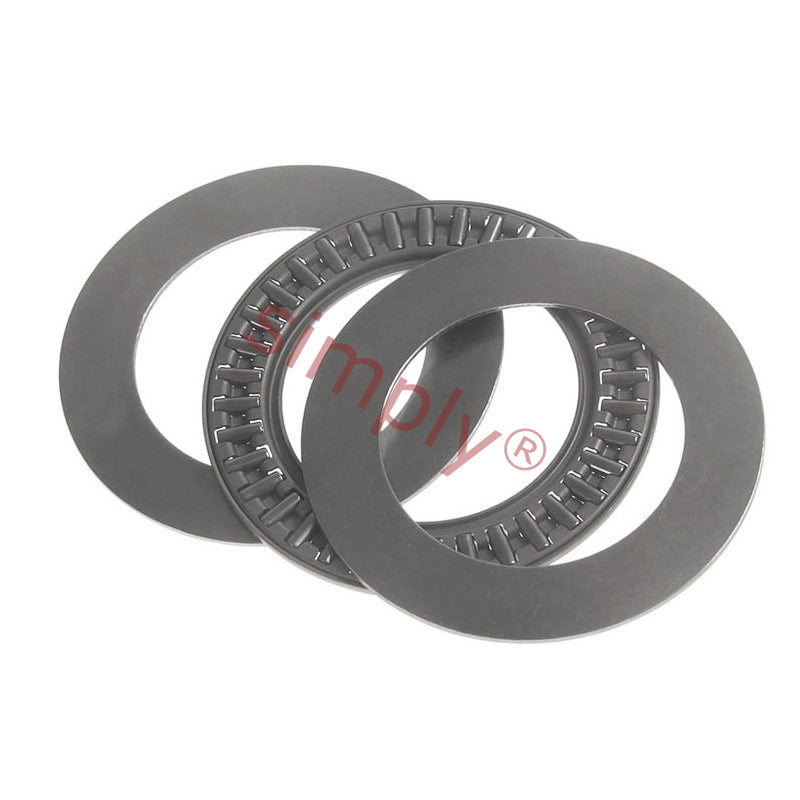

Major Brand NTA815 Needle Roller Cage Thrust Assembly with 2 TRA815 Washers 0.5x0.937x0.1406 inch
Major Brand NTA815 Needle Roller Cage Thrust Assembly with 2 TRA815 Washers 0.5x0.937x0.1406 inch
Equivalent to: NTC815+TRA815
Out of stock
Description
Description
|
NTA Imperial Series Needle Thrust Bearings Complete: Needle roller cage thrust assemblies complete with 2 TRA series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Outside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Width:
- 3.57mm = 0.141 (9/64) inch
Technical
Technical
| d | 0.5 inch |
|---|---|
| D | 0.937 inch |
| Eb | 0.0806 inch |
| Dw | 0.59 inch |
| dw | 0.83 inch |
| Dynamic load | 7.16 kN |
| Static load | 19.13 kN |
| Limiting speed | 19000 rpm |
| Weight | 0.00227 kg |
| Washer | Dimensions |
| d | 0.5 inch |
| d1 | 0.937 inch |
| h min | 0.03 inch |
| h max | 0.032 inch |
| Pilot min | 0.497 inch |
| Pilot max | 0.5 inch |
| Dia to clear washer | 0.969 inch |
| Weight | 0.004 lbs |
