SKU: NU2304ECP/C3-SKF

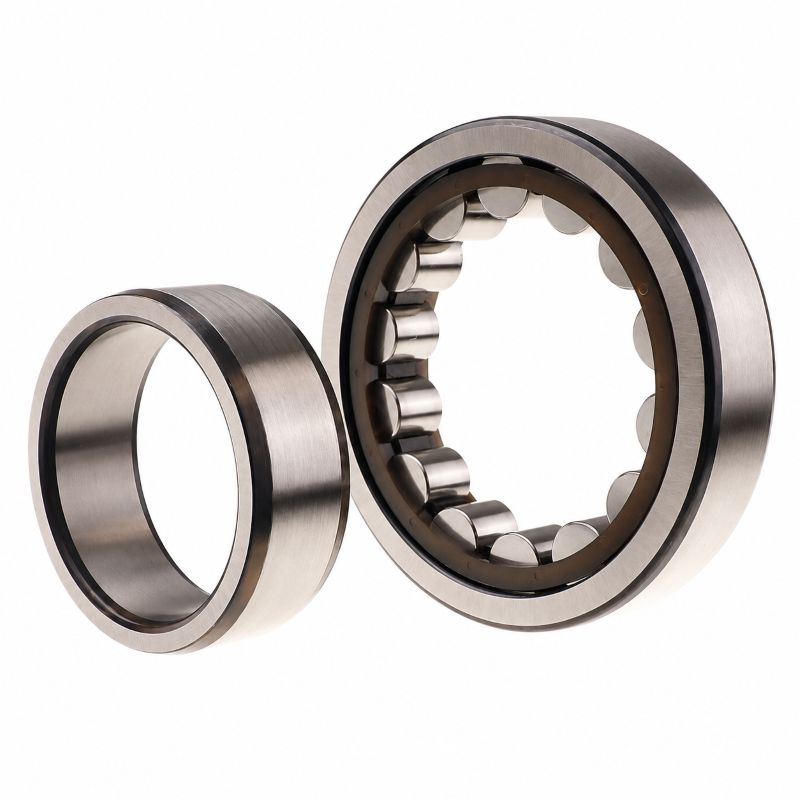

SKF NU2304ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 20x52x21mm
SKF NU2304ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 20x52x21mm
Out of stock
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 21mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 20mm |
|---|---|
| D | 52mm |
| B | 21mm |
| Dynamic load C | 47.5 kN |
| Static load Co | 38 kN |
| Fatigue load limit Pu | 4.8 kN |
| Reference speed | 14000 rpm |
| Limiting speed | 18000 rpm |
| Weight | 0.21 kg |
| D1 | 42.4mm |
| F,E | 27.5mm |
| r1r2 min | 1.1mm |
| r3r4 min | 0.6mm |
| S | 1.9mm |
| da min | 24.2mm |
| da max | 26mm |
| db | 29mm |
| Da max | 45mm |
| ra max | 1mm |
| rb max | 0.6mm |
| kr | 0.29 |
